FRONT FOG LIGHT

id091800011300

Purpose

• By shining light in a wider area in front of the vehicle than the light from the headlights, visibility during poor weather conditions, such as rain and fog, has been improved. In addition, the visibility of the vehicle from on-coming vehicles, pedestrians, and other people has been improved.

Function

• Illuminates according to the light switch and front fog light switch operation.

Construction

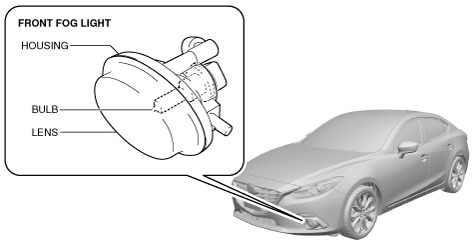

Bulb type

• Round-type front fog lights are installed to the front bumper.

• Clear lenses have been adopted to the front fog lights.

am3uun00002924

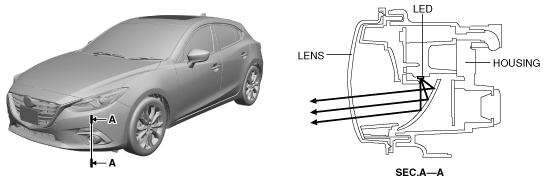

LED type

• Round-type fog lights are installed to the front bumper.

• Clear lenses have been adopted to the front fog lights.

• Light source from one LED

• The optimized shape of the reflector radiates light over a wide area.

am3zzn00004915

Operation

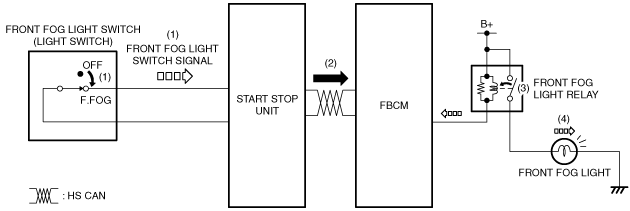

Bulb type

1. With the TNS or headlights are illuminated, the start stop unit detects a front fog light switch signal when the fog light switch is operated to the F.FOG position.

2. The start stop unit sends the front fog light switch signal to the front body control module (FBCM) as a CAN signal.

3. When the front body control module (FBCM) receives the front fog light switch signal, it turns the front fog light relay on.

4. When the front fog light relay turns on, the front fog lights illuminate.

am3uun00002925

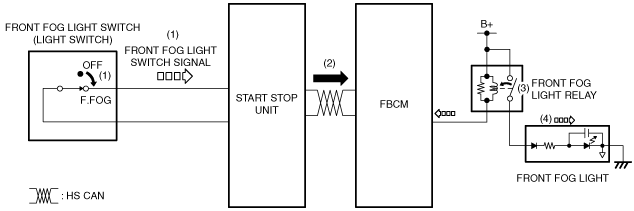

LED type

1. With the TNS or headlights are illuminated, the start stop unit detects a front fog light switch signal when the fog light switch is operated to the F.FOG position.

2. The start stop unit sends the front fog light switch signal to the front body control module (FBCM) as a CAN signal.

3. When the front body control module (FBCM) receives the front fog light switch signal, it turns the front fog light relay on.

4. When the front fog light relay turns on, the front fog lights illuminate.

am3zzn00004916

Fail-safe

• Function not equipped.
