SIDE TURN LIGHT


id091800011400


Purpose

•  The side turn lights are used to signal vehicles/people at the side of the vehicle that the vehicle is going to make a right or left turn.

Function

•  The side turn lights flash according to the operation of the turn switch or the hazard warning switch.

Construction

•  Side turn lights built into the outer mirrors have been adopted.
•  LED type side turn lights have been adopted.

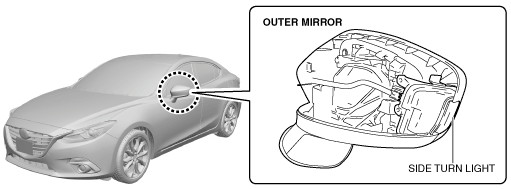

am3uun00002926

Operation


Turn light system

1.  When the turn switch is operated to the LH or RH position, the start stop unit detects a turn switch LH or RH signal.

2.  The start stop unit sends the turn switch LH or RH signal to the front body control module (FBCM) as a CAN signal.

3.  When the front body control module (FBCM) receives the turn switch LH or RH signal, the side turn light (LH) or (RH) flashes.

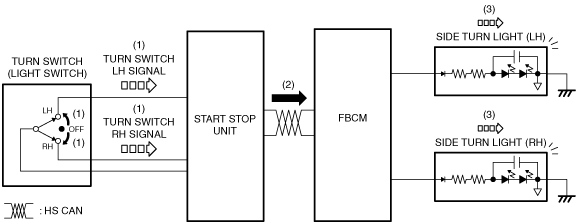

am3uun00002927


Hazard warning system

1.  When the hazard warning switch is turned on, the start stop unit detects a hazard warning switch on signal.

2.  When the start stop unit detects a hazard warning switch on signal, it sends a hazard warning signal to the front body control module (FBCM) as a CAN signal.

3.  When the front body control module (FBCM) receives the hazard warning signal, the side turn light (LH) and (RH) flash.

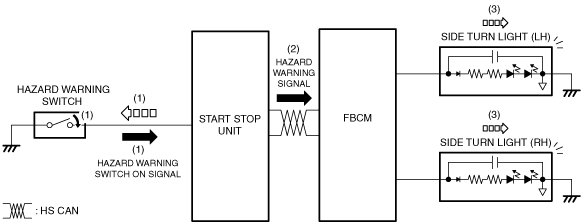

am3uun00002928


Fail-safe

•  Function not equipped.
