REAR COMBINATION LIGHT


id091800011800


Purpose

•  The rear combination lights are used to signal the following conditions to vehicles/people at the rear.
―  Rear turn lights: Signals a left or right turn of the vehicle.
―  Brake lights: Signals a vehicle stop.
―  Taillights: Signals the presence of the vehicle to vehicles/people at the rear during nighttime.

Function

•  The related light turns on or flashes according to the operation of each switch.

Operation switch

Related light

Operation condition

Light switch (TNS)
Taillight
Turns on
Brake switch
Brake light
Turns on
Turn switch
Rear turn light
Flashes
Hazard warning switch


Construction

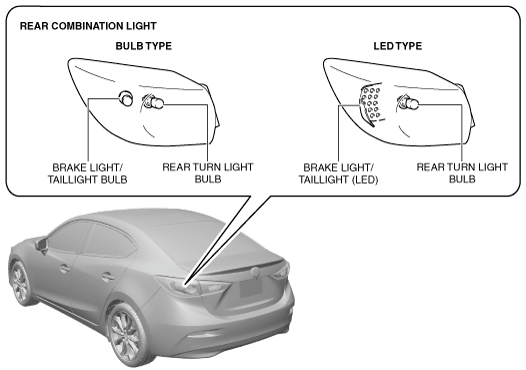

•  The following parts are an integrated structure.
―  Rear turn light bulb
―  Brake light/taillight bulb (with bulb type)
―  Brake light/taillight (LED) (with LED type)
•  The brake light/taillight has adopted a LED. (with LED type)
•  A clear lens has been adopted for the rear combination light.
Note
•  Fogging or condensation on the inside of the rear combination lights may occur, however, it is a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights and has no effect on the light performance. Fogging or condensation will dissipate when the temperature inside the rear combination lights rises after the rear turn lights are illuminated and a period of time has elapsed.
am3zzn00003866

Operation


Taillights

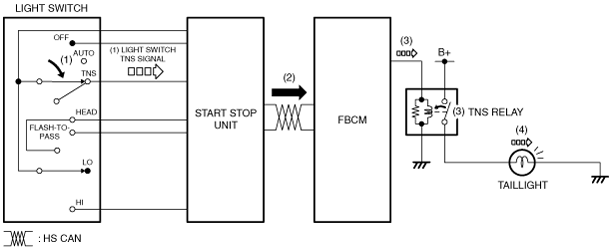

1.  When the light switch is operated to the TNS position, the start stop unit detects a light switch TNS signal.

2.  The start stop unit sends the light switch TNS signal to the front body control module (FBCM) as a CAN signal.

3.  When the front body control module (FBCM) receives the light switch TNS signal, it turns the TNS relay on.

4.  When the TNS relay turns on, the taillights are illuminated.

am3zzn00003867


Brake lights

Operation due to brake pedal operation
Without smart city brake support (SCBS)/Without smart brake support (SBS)
1.  When the brake pedal is depressed, the brake switch (No.1 signal) turns on.
2.  When the brake switch (No.1 signal) turns on, current flows from the battery to the brake lights.
3.  The brake lights turn on.
am3uun00002940

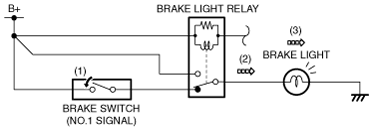

With smart city brake support (SCBS)/Without smart brake support (SBS)
1.  When the brake pedal is depressed, the brake switch (No.1 signal) turns on.
2.  When the brake switch (No.1 signal) turns on, current flows from the battery to the brake lights.
3.  The brake lights turn on.
am3uun00002941

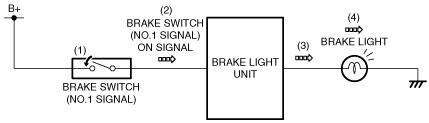

With smart brake support (SBS)
1.  When the brake pedal is depressed, the brake switch (No.1 signal) turns on.
2.  When the brake switch (No.1 signal) turns on, a brake switch (No.1 signal) on signal is input to the brake light unit.
3.  When the brake light unit receives a brake switch (No.1 signal) on signal, it supplies current to the brake lights.
4.  The brake lights turn on.
am3zzn00003868
Operation due to operation request signal from rear body control module (RBCM)
Note
•  Refer to "SMART CITY BRAKE SUPPORT (SCBS)" and "SMART BRAKE SUPPORT (SCBS)" for details. (See SMART CITY BRAKE SUPPORT (SCBS).) (See SMART BRAKE SUPPORT (SBS).)

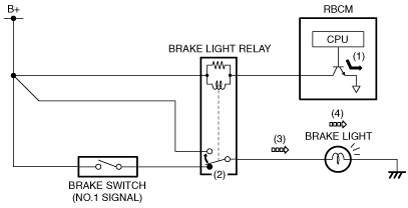

Without smart brake support (SCBS)
1.  When the operation conditions are met, the rear body control module (RBCM) turns on the transistor inside the rear body control module (RBCM).
2.  When the transistor inside the rear body control module (RBCM) turns on, the brake light relay turns on.
3.  When the brake light relay turns on, current flows from the battery to the brake lights.
4.  The brake lights turn on.
am3uun00002942

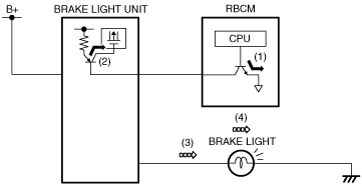

With smart brake support (SCBS)
1.  When the operation conditions are met, the rear body control module (RBCM) turns on the transistor inside the rear body control module (RBCM).
2.  When the transistor inside the rear body control module (RBCM) turns on, the transistor inside the brake light unit turns on.
3.  When the transistor inside the brake light unit turns on, current flows to the brake lights.
4.  The brake lights turn on.
am3zzn00003869

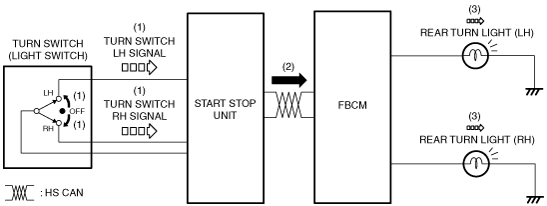

Rear turn lights (Turn light system)

1.  When the turn switch is operated to the LH or RH position, the start stop unit detects a turn switch LH or RH signal.

2.  The start stop unit sends the turn switch LH or RH signal to the front body control module (FBCM) as a CAN signal.

3.  When the front body control module (FBCM) receives the turn switch LH or RH signal, the rear turn light (LH) or (RH) flashes.

am3uun00002943

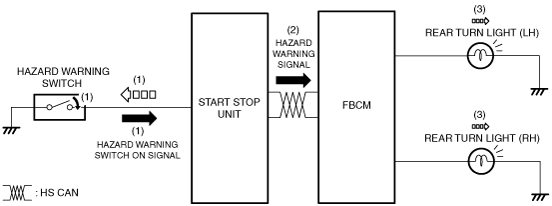

Rear turn lights (Hazard warning system)

1.  When the hazard warning switch is turned on, the start stop unit detects a hazard warning switch on signal.

2.  The start stop unit detects a hazard warning switch on signal, it sends a hazard warning signal to the front body control module (FBCM) as a CAN signal.

3.  When the front body control module (FBCM) receives the hazard warning signal, the rear turn light (LH) and (RH) flash.

am3uun00002944


Fail-safe

•  Function not equipped.
