LICENSE PLATE LIGHT


id091800012100


Purpose

•  The license plate lights shine light on the license plate during nighttime driving.

Function

•  The license plate lights illuminate in conjunction with the operation of the light switch (TNS).

Construction

•  The license plate lights are installed to the trunk lid (4SD)/liftgate (5HB).
am3zzn00004322

Operation

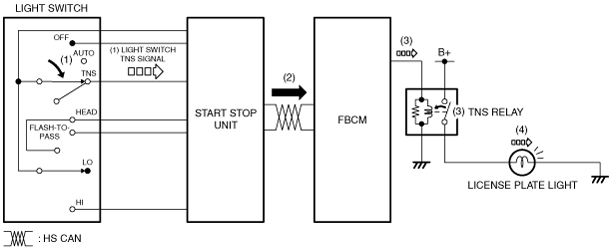

1.  When the light switch is operated to the TNS position, the start stop unit detects a light switch TNS signal.

2.  The start stop unit sends the light switch TNS signal to the front body control module (FBCM) as a CAN signal.

3.  When the front body control module (FBCM) receives the light switch TNS signal, it turns the TNS relay on.

4.  When the TNS relay turns on, the license plate lights are illuminated.

am3uun00002955

Fail-safe

•  Function not equipped.
