TURN SIGNAL/HAZARD WARNING INDICATOR LIGHTS

id091800013500


Purpose

•  Notifies the user that the turn lights are flashing.

Function

•  Flashes according to the turn switch and hazard warning switch operations.

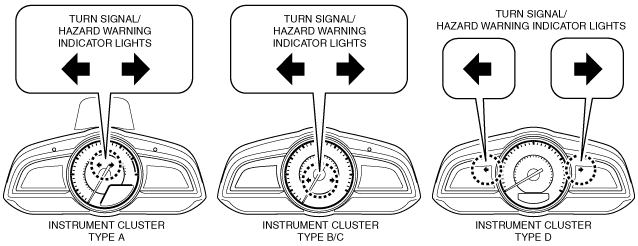

Construction

•  Displayed in the instrument cluster.
am3zzn00004280

Operation

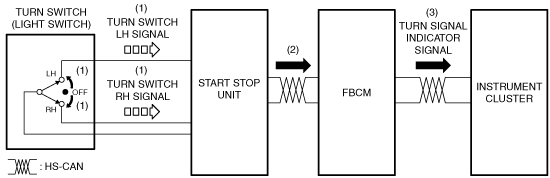

Turn light system

1.  When the turn switch is operated to the LH or RH position, the start stop unit detects a turn switch LH or RH signal.

2.  The start stop unit sends the turn switch LH or RH signal to the front body control module (FBCM) as a CAN signal.

3.  The front body control module (FBCM) sends the turn switch RH or LH signal to the instrument cluster as a turn signal indicator signal.

4.  When a turn signal indicator signal is received, the instrument cluster flashes the turn signal indicator light.

am3uun00002980

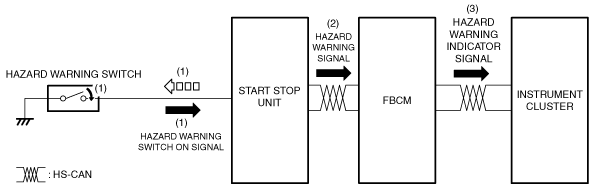

Hazard warning system

1.  When the hazard warning switch is turned on, the start stop unit detects a hazard warning switch on signal.

2.  When the start stop unit detects a hazard warning switch on signal, it sends a hazard warning signal to the front body control module (FBCM) as a CAN signal.

3.  The front body control module (FBCM) sends the hazard warning signal to the instrument cluster as a hazard warning indicator signal.

4.  When the hazard warning indicator signal is received, the instrument cluster flashes the hazard warning indicator light.

am3uun00002981


Fail-safe

•  Function not equipped.
