REAR FOG LIGHT


id091800014100


Purpose

•  The vehicle's presence is signaled to vehicles at the rear by the illumination of the rear fog light during poor weather conditions such as dense fog.

Function

•  The rear fog light illuminates when all of the following conditions are met:
―  The headlights or the front fog lights are illuminated
―  Rear fog light switch ON

Construction

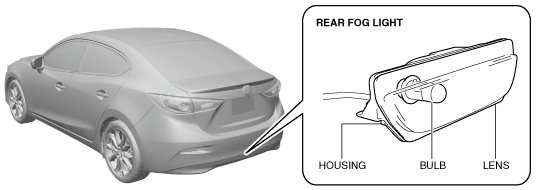

4SD

•  The rear fog light is assembled to the rear bumper.
•  Clear lens has been adopted to the rear fog light.
am3zzn00003885


5HB

•  The rear fog light is assembled to the liftgate light.
am3zzn00003886


Operation

1.  If the fog light switch is operated to the R.FOG position while the headlights or the front fog lights are illuminated, the start stop unit detects the rear fog light switch signal.

2.  The start stop unit sends the rear fog light switch signal to the front body control module (FBCM) as a CAN signal.

3.  When the front body control module (FBCM) receives the rear fog light switch signal, it sends the rear fog light illumination request signal to the instrument cluster via the CAN signal.

4.  The instrument cluster sends the rear fog light illumination request signal to the rear body control module (RBCM).

5.  When the rear body control module (RBCM) receives the rear fog light illumination request signal, it illuminates the rear fog light.

am3zzn00003887

Fail-safe

•  Function not equipped.
