REAR MAP LIGHT

id091800112700

Purpose

• The rear map light shines light at the center of the vehicle interior.

Function

• The rear map light illuminates when the room light switch for front map light is in the ON position.

• The rear map light illuminates according to the lock condition of the driver's door and open/close conditions of the doors under the rear body control module (RBCM) control when the room light switch for front map light is in the DOOR position.

Construction

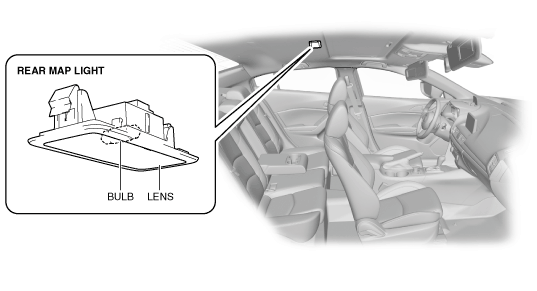

• The rear map light is assembled to center area of the headliner.

am3uun00002992

Operation

Room light switch for front map light operation

ON position

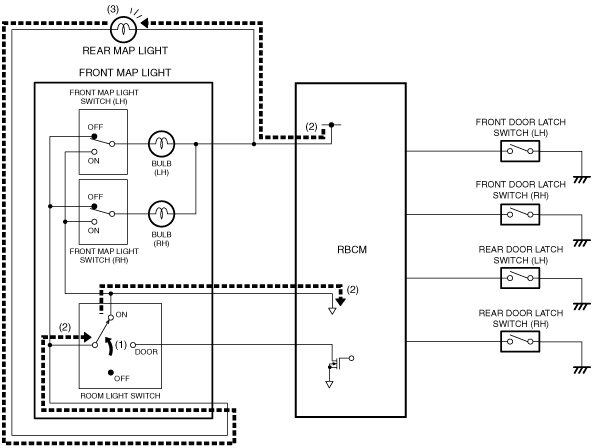

1. Room light switch for front map light is in the ON position.

2. The battery current flows to the rear map light bulb from the rear body control module (RBCM).

3. The rear map light illuminates.

am3uun00002993

DOOR position

1. Room light switch for front map light is in the DOOR position.

2. When any door is opened, the door open signal is input to the rear body control module (RBCM).

3. When the rear body control module (RBCM) receives the door open signal, it turns on the transistor.

4. When the transistor turns on, the battery current flows to the rear map light bulb from the rear body control module (RBCM).

5. The rear map light illuminates.

Note

• When the room light switch for front map light is in the DOOR position, the rear map light illumination on/off timing is controlled by the room light control system. For details, refer to the "ROOM LIGHT CONTROL SYSTEM". (See ROOM LIGHT CONTROL SYSTEM.)

am3uun00002994

Fail-safe

• Function not equipped.
