LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE


id091800112900

Note
•  Settings of some personalization features displayed on the M-MDS cannot be switched depending on the vehicle specification.

Turn Light System

•  There are two methods for personalizing the turn light system: One using the M-MDS and the other using the center display (with center display). Refer to the following and perform the setting.
Using M-MDS
Using center display

Auto Light System

•  There are two methods for personalizing the auto light system: One using the M-MDS and the other using the center display (with center display). Refer to the following and perform the setting.
Using M-MDS
Using center display

Auto Light-Off System

•  There are two methods for personalizing the auto light system: One using the M-MDS and the other using the center display (with center display). Refer to the following and perform the setting.
Using M-MDS
Using center display

High Beam Control (HBC) System

•  There are two methods for personalizing the high beam control (HBC) system: One using the M-MDS and the other using the center display (with center display). Refer to the following and perform the setting.
Using M-MDS
Using center display

Room Light Control System

•  There are two methods for personalizing the room light control system: One using the M-MDS and the other using the center display (with center display). Refer to the following and perform the setting.
Using M-MDS
Using center display

Running Light System (Australian Specs.)

Function

Initial setting

Setting contents

Control module

The running light system function can be set.
On (Running light illumination)
Off (Running light non-illumination)/On (Running light illumination)
Front body control module (FBCM)

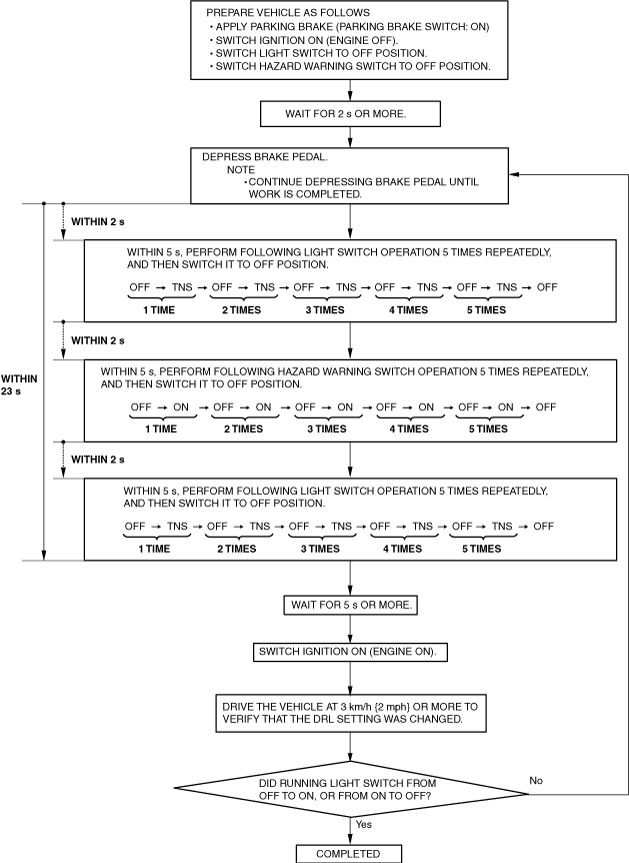

•  Perform the following procedure to change the running light illumination/non-illumination setting.
Note
•  Because each procedure needs to be completed within a predetermined period of time, refer to the following procedure before performing the set up work, and then verify the content of the work and the time limit.
•  Depending on the vehicle specification, the running lights on some vehicles cannot be turned off.
am3zzw00019889
