FRONT TURN LIGHT REMOVAL/INSTALLATION

id091800804300

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Partially peel back front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

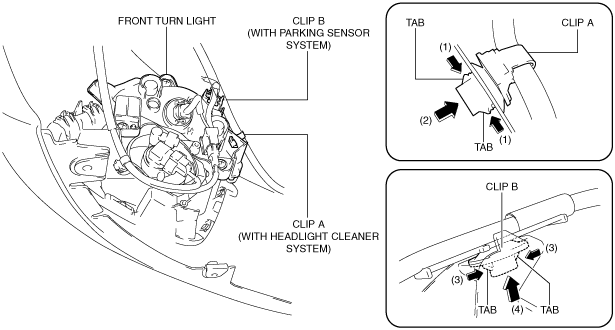

3.  While pressing clip A tabs in the direction of arrows (1) shown in the figure, press clip A in the direction of arrow (2) to remove clip A from the front turn light. (With headlight cleaner system)

am3zzw00017985

4.  While pressing clip B tabs in the direction of arrows (3) shown in the figure, press clip B in the direction of arrow (4) to remove clip B from the front turn light. (With parking sensor system)

5.  Disconnect the connector.

am3uuw00010434

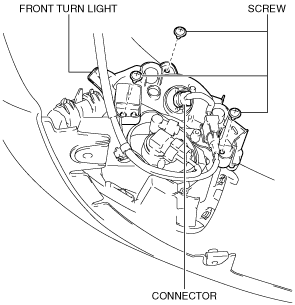

6.  Remove the screws.

7.  Pull out the front turn light from the pins and remove the front turn light.

am3uuw00010435

8.  Install in the reverse order of removal.
