VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION


id091800808200

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Insert the remover tool into the service hole at the position shown in the figure.

am3uuw00010461

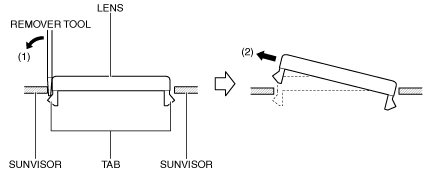

3.  Move the remover tool in the direction of arrow (1) shown in the figure to pull out the lens and detach the lens tabs from the sunvisor.

am3uuw00010462

4.  Pull the lens in the direction of arrow (2) shown in the figure to remove it.

5.  Remove the vanity mirror illumination bulb.

am3uuw00010463

Caution
•  The bulb reaches high temperatures when illuminated. If there is oil or dirt on the surface of the bulb, excessive heat will build up and the life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.

6.  Install in the reverse order of removal.
