BACK-UP LIGHT BULB REMOVAL/INSTALLATION


id091800810000


4SD

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Partially peel back the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

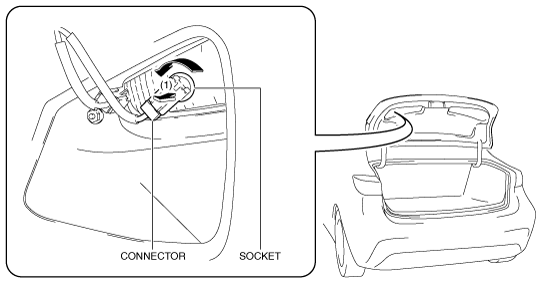

am3uuw00010472

4.  Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.

5.  Remove the back-up light bulb.

am3uuw00010473

Caution
•  The bulb reaches high temperatures when illuminated. If there is oil or dirt on the surface of the bulb, excessive heat will build up and the life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.

6.  Install in the reverse order of removal.


5HB

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the service hole cover.

am3uuw00011944

3.  Disconnect the connector.

am3uuw00010476

4.  Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.

5.  Remove the back-up light bulb.

am3uuw00010477

Caution
•  The bulb reaches high temperatures when illuminated. If there is oil or dirt on the surface of the bulb, excessive heat will build up and the life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.

6.  Install in the reverse order of removal.
