FRONT TURN LIGHT


id091800903300


Purpose

•  The front turn lights notify pedestrians and other vehicles of the vehicle making a left or right turn.

Function

•  The front turn lights flash according to the operation of the turn switch or the hazard warning switch.

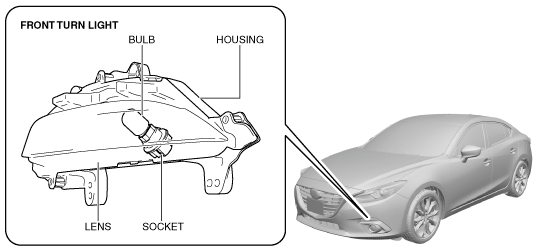

Construction

•  The front turn lights are assembled to the front bumper.
•  Clear lenses have been adopted on the front turn lights.
am3uun00003013

Operation

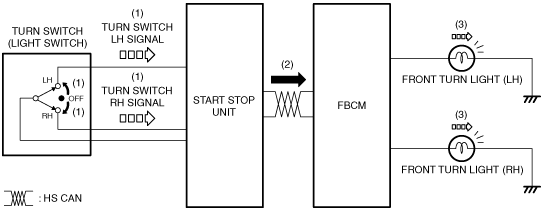

Turn light system

1.  When the turn switch is operated to the LH or RH position, the start stop unit detects a turn switch LH or RH signal.

2.  The start stop unit sends the turn switch LH or RH signal to the front body control module (FBCM) as a CAN signal.

3.  When the front body control module (FBCM) receives the turn switch LH or RH signal, the front turn light (LH) or (RH) is flashed.

am3uun00003014

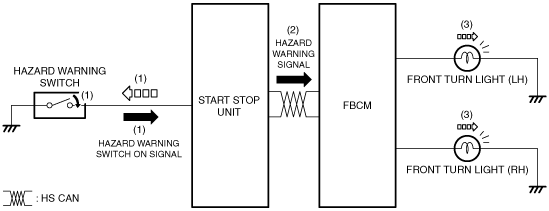

Hazard warning system

1.  When the hazard warning switch is turned on, the start stop unit detects a hazard warning switch on signal.

2.  When the start stop unit detects a hazard warning switch on signal, it sends the hazard warning signal to the front body control module (FBCM) via a CAN signal.

3.  When the front body control module (FBCM) receives the hazard warning signal, the front turn lights (RH) and (LH) flash.

am3uun00003015


Fail-safe

•  Function not equipped.
