FRONT TURN LIGHT SHORT CORD REMOVAL/INSTALLATION


id091800906100

Note
•  The front turn light short cord for vehicles with the parking sensor system is integrated with the front ultrasonic sensor short cord.

Without Parking Sensor System

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5],)

2.  Partially peel back front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

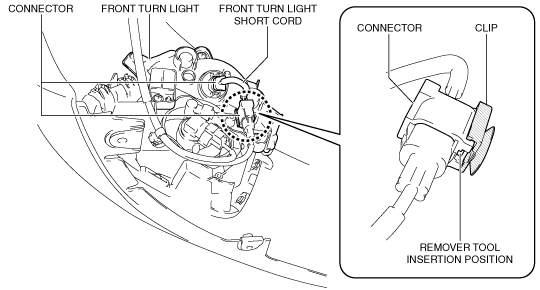

3.  Insert the remover tool into the position shown in the figure.

am3uuw00010545

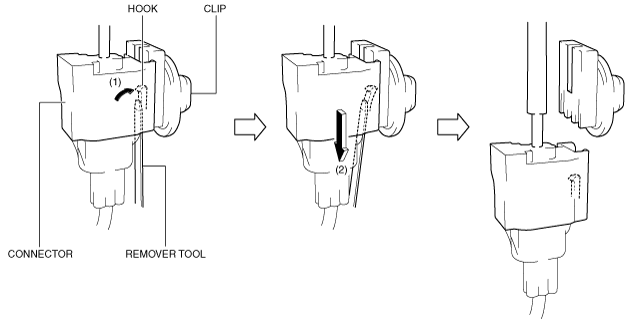

4.  While pressing the connector hook in the direction of arrow (1) shown in the figure using the remover tool, move the connector in the direction of arrow (2) and remove the connector from the clip.

am3uuw00010546

5.  Disconnect the connectors and remove the front turn light short cord.

6.  Install in the reverse order of removal.


With Parking Sensor System

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

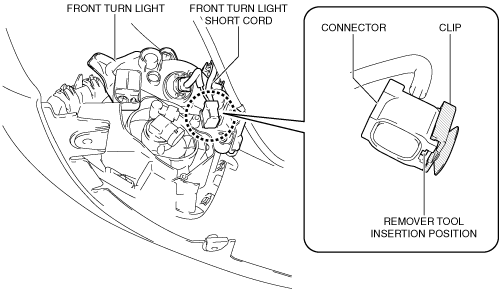

4.  Insert the remover tool into the position shown in the figure.

am3zzw00017989

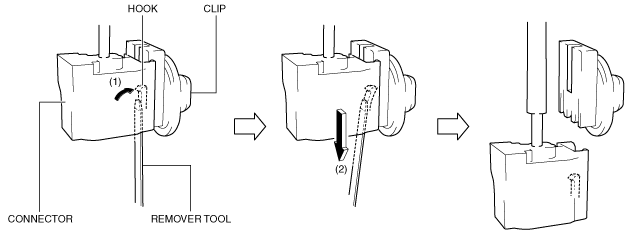

5.  While pressing the connector hook in the direction of arrow (1) shown in the figure using the remover tool, move the connector in the direction of arrow (2) and remove the connector from the clip.

am3zzw00013897

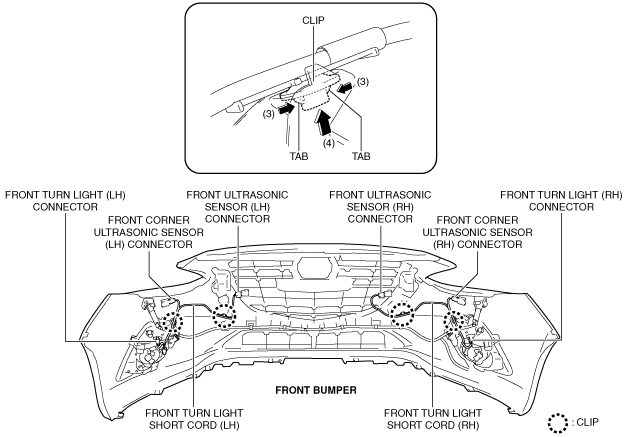

6.  While pressing the clip tabs in the direction of arrows (3) shown in the figure, press the clip in the direction of arrow (4) to remove the clip.

am3zzw00013898

7.  Disconnect the connectors and remove the front turn light short cord.

8.  Install in the reverse order of removal.
