WINDSHIELD WIPER MOTOR

id091900015000

Purpose

• The windshield wiper motor transmits rotation force to the windshield wiper link to operate the windshield wiper arms and blades.

Function

• The windshield wiper motor operates using the current from the front body control module (FBCM) which is input according to the windshield wiper and washer switch operation, and generates rotation force for the low/high 2 system.

Construction

• The windshield wiper motor is integrated with the windshield wiper link.

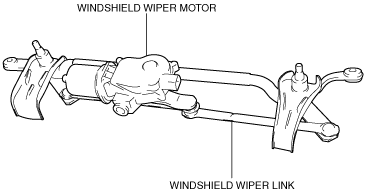

am3uun00003127

Operation

1. The windshield wiper motor rotates the motor based on the current from the front body control module (FBCM).

2. When the motor rotates, rotation force is transmitted to the windshield wiper link and converted to the reciprocating movement of the windshield wiper link.

3. When the reciprocating movement of the windshield wiper link is converted, the windshield wiper arm and blade operates.

4. When the windshield wiper arms and blades are operated to the park position, the auto stop switch turns on and the windshield wiper arms and blades stop at the park position.

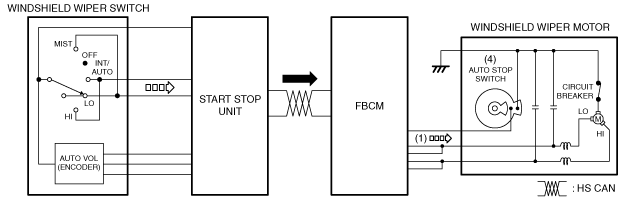

am3uun00003128

Fail-safe

• Function not equipped.
