SPEAKER [WITHOUT Bose®, WITHOUT CENTER DISPLAY]


id0920z90103x9


Purpose

•  Converts the audio signal from the audio unit to sound.

Function

•  Full-range speakers, which can output wide-range sound from low to high frequency, have been adopted.

Specification

Item

Front door speaker

Rear speaker

Max. input
(W)
25
25
Rated impedance
(ohm)
3.4 — 4.6
3.4 — 4.6
Size
(cm {in})
16.5 {6.5}
16.5 {6.5}


Construction

•  A cone-shaped dynamic speaker has been adopted for each speaker.
•  A weight reduction was achieved by using pulp for the cone material and adopting a ferrite magnet.

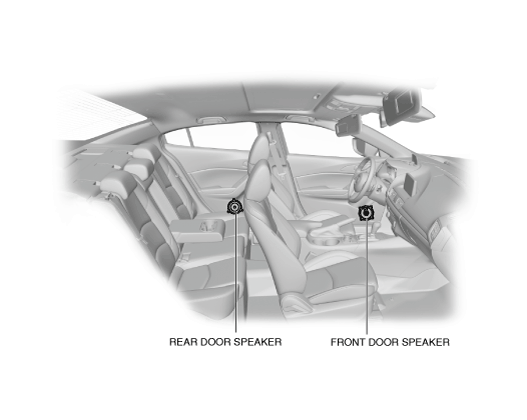

am3uun00003381

Operation

1.  The speaker sends the audio signal (current) from the audio unit to the voice coil.
2.  When the audio signal (current) is sent to the voice coil, the coil becomes magnetized and a magnetic field occurs. Because the voice coil and the magnet pull and repel each other in the magnetic field, the voice coil vibrates.
3.  Because the voice coil is wrapped around the voice coil bobbin, the voice coil bobbin vibrates when the voice coil vibrates.
4.  When the voice coil bobbin vibrates, the cone (diaphragm) installed to the voice coil bobbin vibrates and generates sound.
am5ezn00001291

Fail-safe

•  Function not equipped.
