STEERING SWITCH [WITHOUT CENTER DISPLAY]

id0920z9010500


Purpose, Function

•  Operation of the entertainment system and change of the instrument cluster display are possible without a change in driving posture.

Construction

•  The steering switch is located on the spoke of the steering wheel.
•  The resistance is built into each switch.

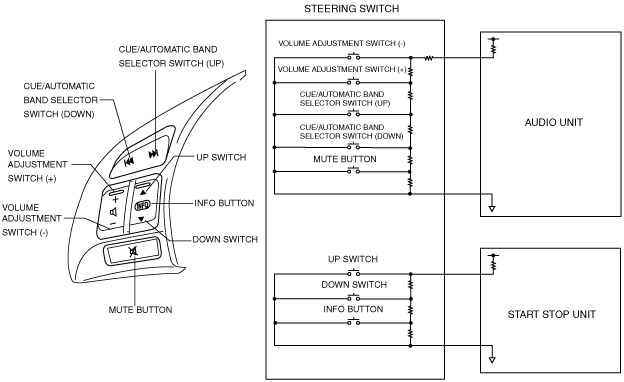

Without Bluetooth® unit

•  The steering switch consists of a volume adjustment (+) or (-) switch, cue/automatic band selector (up) or (down) switch, INFO button, up switch, down switch, and mute button.
am3uun00003657

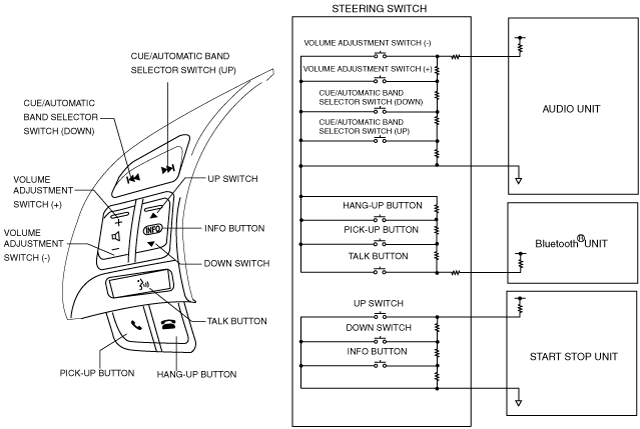

With Bluetooth® unit

•  The steering switch consists of a volume adjustment (+) or (-) switch, cue/automatic band selector (up) or (down) switch, INFO button, up switch, down switch, TALK button, PICK-UP button, and HANG-UP button.
am3uun00003647


Operation

Switch name

Operation
Volume adjustment switch
Audio volume can be adjusted.
Cue/Automatic band selector switch
Cue of CD tracks and selection of radio band are possible.
Mute button (Without Bluetooth® unit)
Audio volume can be muted. Pressing again after muting returns to previous volume level.
INFO button (With INFO button)
Instrument cluster display can be changed. Refer to trip computer information system for display content. (See TRIP COMPUTER INFORMATION SYSTEM.)
Up/down switch (With INFO button)
Instrument cluster display can be changed. trip computer information system for display content. (See TRIP COMPUTER INFORMATION SYSTEM.)
TALK button (With Bluetooth® unit)
Launches the voice recognition function.
Pick-up button (With Bluetooth® unit)
Receives a phone call.
Hang-up button (With Bluetooth® unit)
Hangs up a phone call.


Fail-safe

•  Function not equipped.
