STEERING SWITCH [WITH CENTER DISPLAY]


id0920zz010500


Purpose, Function

•  Operation of the entertainment system and change of the instrument cluster display are possible without a change in driving posture.

Construction

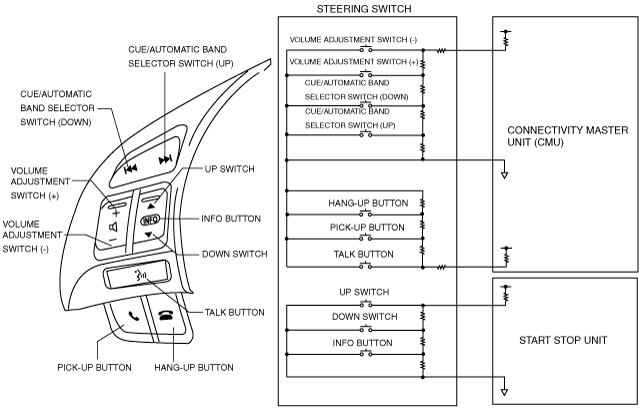

•  The steering switch is located on the spoke of the steering wheel.
•  The resistance is built into each switch.
•  The steering switch consists of a volume adjustment (+) or (-) switch, cue/automatic band selector (up) or (down) switch, INFO button, up switch, down switch, TALK button, PICK-UP button, and HANG-UP button.
am3zzn00004667

Operation

Switch name

Operation

Volume adjustment switch
Audio volume can be adjusted.
Cue/Automatic band selector switch
Cue of CD tracks and selection of radio band are possible.
Mute button (Without Bluetooth system)
Audio volume can be muted. Pressing again after muting returns to previous volume level.
INFO button
Instrument cluster display can be changed. Refer to TRIP COMPUTER INFORMATION SYSTEM for display content. (See TRIP COMPUTER INFORMATION SYSTEM.)
Up/down switch
Instrument cluster display can be changed. Refer to TRIP COMPUTER INFORMATION SYSTEM for display content. (See TRIP COMPUTER INFORMATION SYSTEM.)
TALK button
Initiates voice recognition mode.
Pick-up button
During incoming call
•  Receives a phone call.
Other than during incoming call
•  Switches display of center display to call history screen.
Hang-up button
Hangs up a phone call.


Fail-safe

•  Function not equipped.
