ON-BOARD DIAGNOSTIC [FORWARD SENSING CAMERA (FSC)]

id092200021852


Outline

•  The on-board diagnostic function consists of the following functions:
―  A malfunction detection function, which detects overall malfunctions in the forward sensing camera (FSC)-related parts.
―  A memory function, which stores detected DTCs.
―  A display function, which indicates malfunction locations and status via DTC output.
―  A PID/data monitoring function, which reads out specific input/output signals and verifies the input/output condition.
•  Using the Mazda Modular Diagnostic System (M-MDS), DTCs can be read out and deleted, and the PID/data monitoring function can be activated.

Malfunction detection function

•  Detects malfunctions in input/output signals.
•  If a malfunction occurs, the FSC records the malfunction as a DTC. A recorded DTC can be read by the Mazda Modular Diagnostic System (M-MDS).

×: Applicable
—: Not applicable

DTC No.

HBC system warning light (amber)/LDWS warning light (amber)

Description

Fail-safe function

Drive cycle

Self test type*1

Memory function
B115E:54
Flash
Forward sensing camera (FSC) aiming not completed
×
—
C, D
×
B13A6:11
Flash
LDWS switch circuit malfunction
×
—
C, D
×
C1001:92
Illuminated
Poor functioning of forward sensing camera (FSC)
×
—
C, D
×
C1001:97
Illuminated
Forward sensing camera (FSC) poor visibility
×
—
C, D
×
U0001:88
Flash
Module communication error (HS-CAN)
×
—
C, D
×
U0100:00
Flash
Communication error with PCM
×
—
C, D
×
U0121:00
Flash
Communication error with DSC HU/CM
×
—
C, D
×
U0131:00
Flash
Communication error with EPS control module
×
—
C, D
×
U0140:00
Flash
Communication error with front body control module (FBCM)
×
—
C, D
×
U0155:00
Flash
Communication error with instrument cluster
×
—
C, D
×
U0214:00
Flash
Communication error with start stop unit
×
—
C, D
×
U0401:68
Flash
Error signal received from PCM
×
—
C, D
×
U0415:68
Flash
Error signal received from DSC HU/CM
×
—
C, D
×
U0420:68
Flash
Error signal received from EPS control module
×
—
C, D
×
U0423:68
Flash
Error signal received from instrument cluster
×
—
C, D
×
U0515:68
Flash
Error signal received from start stop unit
×
—
C, D
×
U2005:86
Flash
Error signal received from PCM
×
—
C, D
×
U2100:00
Illuminated
Forward sensing camera (FSC) configuration error
×
—
C, D
×
U2101:00
Illuminated
Forward sensing camera (FSC) configuration error
×
—
C, D
×
U3000:04
Flash
Forward sensing camera (FSC) internal malfunction
×
—
C, D
×
U3000:09
Flash
Forward sensing camera (FSC) internal malfunction
×
—
C, D
×
U3000:42
Flash
Forward sensing camera (FSC) internal malfunction
×
—
C, D
×
U3000:49
Flash
Forward sensing camera (FSC) internal malfunction
×
—
C, D
×
U3003:16
Flash
Forward sensing camera (FSC) low power supply voltage input
×
—
C, D
×
U3003:17
Flash
Forward sensing camera (FSC) high power supply voltage input
×
—
C, D
×

*1  :C: CMDTC self test, D: ODDTC self test

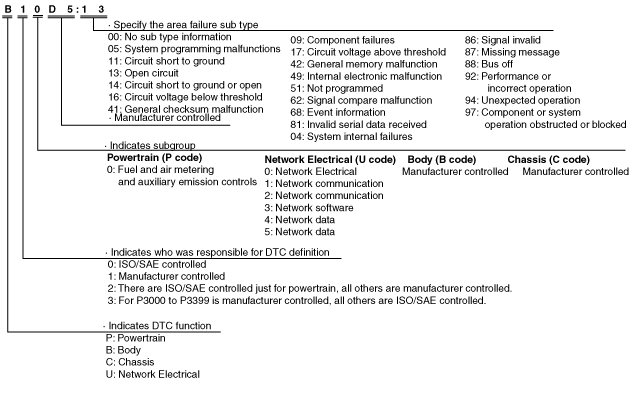

DTC 7-digit code definition

•  When related systems or components have failed, the CM stores the DTC of the malfunctioning part in the CM memory, and allows for the retrieval of the store data using scanning tool when necessary. The DTCs are indicated using seven digits. Each digit indicates the following.
ac5wzn00001569


Status byte for DTC

•  The two digits (two digits after hyphen (-)) after the 7-digit DTC.
ac5wzn00002011
•  A code which indicates the pending code, current/past malfunction status, or warning illumination status.
•  Can be read by performing a CMDTC self-test using the Mazda Modular Diagnostic System (M-MDS).
•  For details on the status byte, refer to the explanation on the Mazda Modular Diagnostic System (M-MDS) when reading the DTC.


Detection condition for the applicable DTC

DTC No.

Description

Detection condition
B115E:54
Forward sensing camera (FSC) aiming not completed
Forward sensing camera (FSC) aiming not completed is detected.
B13A6:11
LDWS switch circuit malfunction
Forward sensing camera (FSC) detects that LDWS switch is held pressed for 10 s or more.
C1001:92
Poor functioning of forward sensing camera (FSC)
With the LDWS switch on or the high beam control (HBC) system operating, the forward sensing camera (FSC) detects that its field of view is poor for a certain period of time.
C1001:97
Forward sensing camera (FSC) poor visibility
With the LDWS switch on or the high beam control (HBC) system operating, the forward sensing camera (FSC) detects that its field of view is obstructed for a certain period of time.
U0001:88
Module communication error (HS-CAN)
•   Forward sensing camera (FSC) cannot receive the CAN bus communication signal (HS-CAN) for 1 s or more.
•  Forward sensing camera (FSC) detects the CAN bus communication line (HS-CAN) malfunction 10 times continuously.
U0100:00
Communication error with PCM
Forward sensing camera (FSC) cannot receive the CAN signal from the PCM for 1 s or more.
U0121:00
Communication error with DSC HU/CM
Forward sensing camera (FSC) cannot receive the CAN signal from the DSC HU/CM for 1 s or more.
U0131:00
Communication error with EPS control module
Forward sensing camera (FSC) cannot receive the CAN signal from the EPS control module for 1 s or more.
U0140:00
Communication error with front body control module (FBCM)
Forward sensing camera (FSC) cannot receive the CAN signal from the front body control module (FBCM) for 5 s or more.
U0155:00
Communication error with instrument cluster
Forward sensing camera (FSC) cannot receive the CAN signal from the instrument cluster for 5 s or more.
U0214:00
Communication error with start stop unit
Forward sensing camera (FSC) cannot receive the CAN signal from the start stop unit for 1 s or more.
U0401:68
Error signal received from PCM
Forward sensing camera (FSC) receives the error signal from the PCM for 5 s or more.
U0415:68
Error signal received from DSC HU/CM
Forward sensing camera (FSC) receives the error signal from the DSC HU/CM for 5 s or more.
U0420:68
Error signal received from EPS control module
Forward sensing camera (FSC) receives the error signal from the EPS control module for 5 s or more.
U0423:68
Error signal received from instrument cluster
Forward sensing camera (FSC) receives the error signal from the instrument cluster for 5 s or more.
U0515:68
Error signal received from start stop unit
Forward sensing camera (FSC) receives the error signal from the start stop unit for 5 s or more.
U2005:86
Error signal received from PCM
Forward sensing camera (FSC) receives the vehicle speed signal error from the PCM for 5 s or more.
U2100:00
Forward sensing camera (FSC) configuration error
Forward sensing camera (FSC) configuration not completed is detected.
U2101:00
Forward sensing camera (FSC) configuration error
Detects that forward sensing camera (FSC) has unsupported configuration data.
U3000:04
Forward sensing camera (FSC) internal malfunction
Forward sensing camera (FSC) detects an error in the image-related circuit in the forward sensing camera (FSC) with the ignition switched ON (engine off or on).
U3000:09
Forward sensing camera (FSC) internal malfunction
Forward sensing camera (FSC) detects an internal temperature sensor malfunction in the forward sensing camera (FSC) with the ignition switched ON (engine off or on).
U3000:42
Forward sensing camera (FSC) internal malfunction
Forward sensing camera (FSC) detects a NVRAM error in the forward sensing camera (FSC) with the ignition switched ON (engine off or on).
U3000:49
Forward sensing camera (FSC) internal malfunction
Forward sensing camera (FSC) detects a malfunction in the forward sensing camera (FSC) with the ignition switched ON (engine off or on).
U3003:16
Forward sensing camera (FSC) low power supply voltage input
Forward sensing camera (FSC) power supply circuit voltage of 8.0 Å} 0.8 V or less is detected for 5 s or more with the ignition switched ON (engine off or on).
U3003:17
Forward sensing camera (FSC) high power supply voltage input
Forward sensing camera (FSC) power supply circuit voltage of 8.0 ± 0.8 V or less is detected for 5 s or more with the ignition switched ON (engine off or on).


Snap shot data

Note
•  The forward sensing camera (FSC) stores the following two types of snapshot data (vehicle information) when a DTC is detected and displays them in the M-MDS.
―  Vehicle information detected by forward sensing camera (FSC)
―  Vehicle information detected by instrument cluster and received by forward sensing camera (FSC) via CAN signal
•  The data for all DTCs currently detected is stored.

—: Not applicable

Snapshot data item

Unit

Data contents

Data read/use method

Corresponding data monitor items
ECU_IN_TMP
°C
°F
ECU Internal Temperature
—
—
IG-ON_TIMER
hh:mm:ss*1
Elapsed time since ignition was switched ON (engine off or on)
Note
•  The instrument cluster records the elapsed time since the ignition was switched ON (engine off or on).
•  The forward sensing camera (FSC) constantly receives the elapsed time since the ignition was switched ON (engine off or on) sent via CAN signal from the instrument cluster.
•  If a DTC is detected, the forward sensing camera (FSC) records the elapsed time since the ignition was switched ON (engine off or on) when the DTC was detected, and it is displayed in the M-MDS.
—
OPE_MODE
Normal/CALIBRATION/EMERGENCY
Operation Mode
—
—
VSPD
KPH
MPH
Vehicle speed
—
—

*1  :The seconds may be indicated after the decimal point.


Data Monitor Function

•  The PID/data monitor function performs reading in real time of optionally selected input/output signal monitor items that are set in the FSC.

PID/data monitor table

PID

Unit/Operation

Data contents

Module control terminal
A_ANG_PITCH
° (deg)
Displays vanishing point correction angle (pitch) corrected by forward sensing camera (FSC) when performing forward sensing camera (FSC) aiming using Mazda Modular Diagnostic System (M-MDS).
C, E (CAN)
A_ANG_ROLL
° (deg)
Displays vanishing point correction angle (roll) corrected by forward sensing camera (FSC) when performing forward sensing camera (FSC) aiming using Mazda Modular Diagnostic System (M-MDS).
C, E (CAN)
A_ANG_YAW
° (deg)
Displays vanishing point correction angle (pitch) corrected by forward sensing camera (FSC) when performing forward sensing camera (FSC) aiming using Mazda Modular Diagnostic System (M-MDS).
C, E (CAN)
BRAKE_SW
Off/On
•  Off: Brake switch (No. 2 signal) is off. (Brake pedal is depressed.)
•  On: Brake switch (No. 2 signal) is on. (Brake pedal is not depressed.)
C, E (CAN)
DSP_LANE_ST
Off/Dash_Lane/Solid_Lane
•  Off: Vehicle lanes not displayed in the active driving display (ADD) (type A instrument cluster)/multi-information display (type B instrument cluster)
•  Dash_Lane: Displays broken lines in the active driving display (ADD) (type A instrument cluster)/multi-information display (type B instrument cluster)
•  Solid_Lane: Displays actual lanes in the active driving display (ADD) (type A instrument cluster)/multi-information display (type B instrument cluster)
C, E (CAN)
DSP_WRN_ST
Off/LDWS_Left/LDWS_Right/LDWS_Fail/HBC_Fail/Camera_BLK/FSC_Fail/Camera_DRDT
With multi-information display
•  Off: Warning not displayed in the multi-information display
•  LDWS_Left: Warning related to lane departure on vehicle left side is displayed in the multi-information display.
•  LDWS_Right: Warning related to lane departure on vehicle right side is displayed in the multi-information display.
•  LDWS_Fail: Warning related to malfunction in lane departure warning system (LDWS) is displayed in the multi-information display.
•  HBC_Fail: Warning related to malfunction in high beam control (HBC) system is displayed in the multi-information display.
•  Camera_BLK: Warning related to dirt of the forward sensing camera (FSC) is displayed in the multi-information display.
•  FSC_Fail: Warning related to malfunction in forward sensing camera (FSC) is displayed in the multi-information display.
•  Camera_DRDT: Warning related to fogging of the forward sensing camera (FSC) is displayed in the multi-information display.
With center display
•  Off: Warning not displayed in the center display
•  LDWS_Left: Warning related to lane departure on vehicle left side is displayed in the center display.
•  LDWS_Right: Warning related to lane departure on vehicle right side is displayed in the center display.
•  LDWS_Fail: Warning related to malfunction in lane departure warning system (LDWS) is displayed in the center display.
•  HBC_Fail: Warning related to malfunction in high beam control (HBC) system is displayed in the center display.
•  Camera_BLK: Warning related to dirt of the forward sensing camera (FSC) is displayed in the center display.
•  FSC_Fail: Warning related to malfunction in forward sensing camera (FSC) is displayed in the center display.
•  Camera_DRDT: Warning related to fogging of the forward sensing camera (FSC) is displayed in the center display.
C, E (CAN)
HBC_H/L_CS
Hi_Request/Low_Request/Invalid
•  Hi_Request: HI beam switch signal received
•  Low_Request: LO beam switch signal received
•  Invalid: Error in HI/LO beam switch request signal
C, E (CAN)
IL_ST_HBC
Off/Green_On/Green_Flash/Amber_On/Amber_Flash
•  Off: HBC system indicator light (green) and HBC system warning indicator light (amber) turned off
•  Green_On: HBC system indicator light (green) is illuminated.
•  Green_Flash: HBC system indicator light (green) is flashing.
•  Amber_On: HBC system warning light (amber) is illuminated.
•  Amber_Flash: HBC system warning light (amber) is flashing.
C, E (CAN)
IL_ST_LDWS
Off/Green_On/Green_Flash/Amber_On/Amber_Flash
•  Off: LDWS indicator light (green) and LDWS warning light (amber) turned off
•  Green_On: LDWS indicator light (green) illuminated
•  Green_Flash: LDWS indicator light (green) is flashing.
•  Amber_On: LDWS warning light (amber) is illuminated.
•  Amber_Flash: LDWS warning light (amber) is flashing.
C, E (CAN)
LDWS_BUZZER
Off/On
•  Off: LDWS warning alarm does not sound.
•  On: LDWS warning alarm sounds.
C, E (CAN)
LDWS_SW
Off/On
•  Off: LDWS switch is off.
•  On: LDWS switch is on.
C, E (CAN)
RS_SOUND_CS
Off/Left/Right
•  Off: Rumble strip sound is not heard.
•  Left: Left side rumble strip sound heard.
•  Right: Right side rumble strip sound heard.
C, E (CAN)
VPWR_IG1
V
Displays forward sensing camera (FSC) power supply voltage
I (Power supply)
VSPD
KPH, MPH
Displays vehicle speed
C, E (CAN)
