•  The blind spot monitoring (BSM) system can be turned on or off optionally by the driver.

•  The switch operation signal is sent to the instrument cluster.

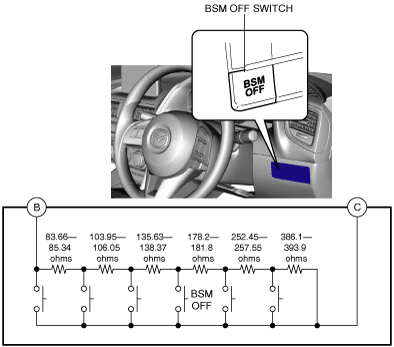

•  The BSM OFF switch is built into the cluster switch.

•  The resistance is built into each switch.

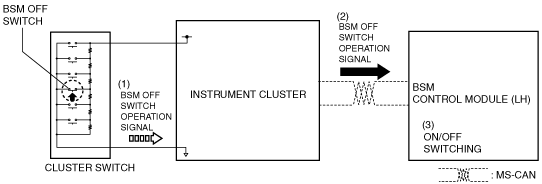

1.  When the BSM OFF switch operates, the BSM OFF switch operation signal is sent to the instrument cluster.

2.  The instrument cluster sends a BSM OFF switch operation signal to the blind spot monitoring (BSM) control module (LH) based on the received voltage value (switch operation signal).

3.  The blind spot monitoring (BSM) control module (LH) switches the blind spot monitoring (BSM) system on/off when it receives the BSM OFF switch operation signal from the instrument cluster.

am3uun00003294

•  Function not equipped.
