•  The rear vehicle monitoring system can be turned on or off optionally by the driver.

•  The switch operation signal is sent to the instrument cluster.

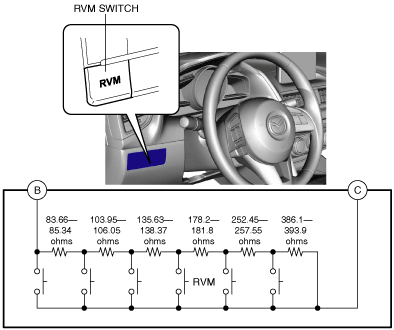

•  The RVM switch is built into the cluster switch.

•  The resistance is built into each switch.

1.  When the RVM switch operates, the RVM switch operation signal is sent to the instrument cluster.

2.  The instrument cluster sends a RVM switch operation signal to the rear vehicle monitoring control module (LH) based on the received voltage value (switch operation signal).

3.  When the rear vehicle monitoring control module (LH) receives the RVM switch operation signal from the instrument cluster, it switches the rear vehicle monitoring system on/off.

am3zzn00004135

•  Function not equipped.
