FORWARD SENSING CAMERA (FSC) SHORT-CORD INSPECTION

id092200032000

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

2.  Remove the following parts:

(1)  Cover (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)

(2)  Auto-dimming mirror (See AUTO-DIMMING MIRROR REMOVAL/INSTALLATION.)

(3)  FSC short-cord (See FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION.)

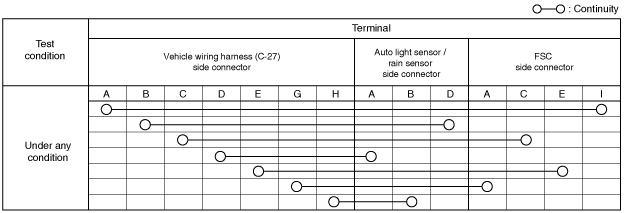

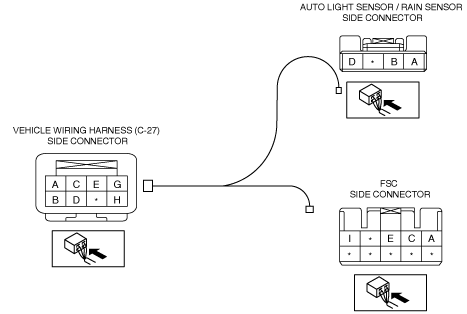

3.  Verify that the continuity between the FSC short-cord terminals is as indicated in the table.

am3zzw00017765

am3zzw00014407

•  If not as indicated in the table, replace the FSC short-cord. (See FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION.)
