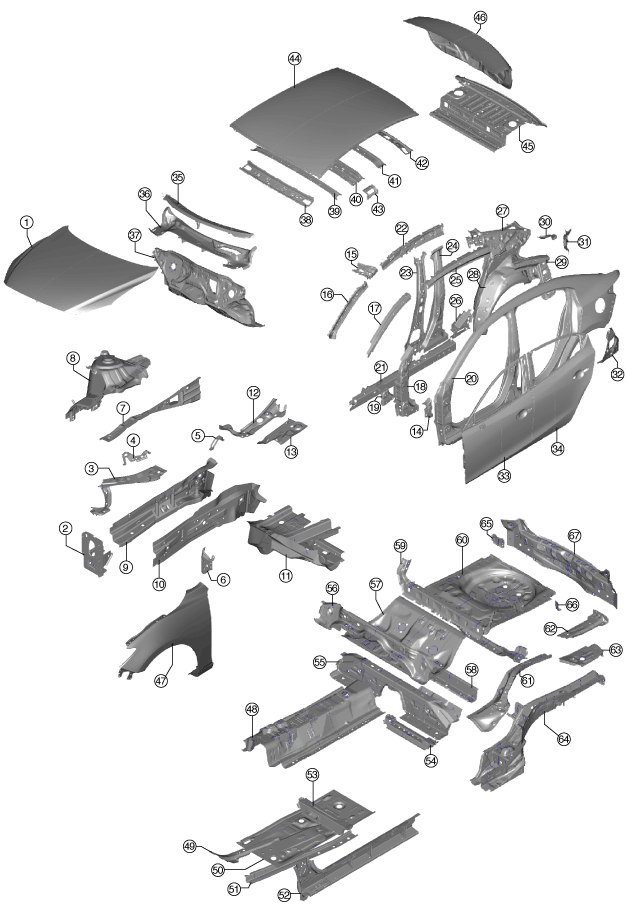

BODY COMPONENTS CONSTRUCTION [CONSTRUCTION]

id098007739700


4SD

am3uub00000392

x:Applied
-:Not applied

No.

Part name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet
-
X
X
0.70
{0.03}
2
Bumper bracket
X
-
X
2.00
{0.08}
3
Shroud side member component
Shroud side stay
-
-
X
1.20
{0.05}
Shroud side panel
-
X
X
0.90
{0.04}
4
Shroud upper reinforcement
-
-
X
0.80
{0.03}
5
Front fender junction
-
-
X
0.80
{0.03}
6
Light bracket
-
-
X
1.20
{0.05}
7
Cowl side reinforcement
-
X
X
1.20
{0.05}
8
Wheel apron component
Cowl side reinforcement (lower)
-
X
X
0.80
{0.03}
Apron reinforcement No.3
X
-
X
1.20
{0.05}
Suspension reinforcement (upper)
-
X
X
2.00
{0.08}
Suspension reinforcement (lower)
-
-
X
0.80
{0.03}
Wheel apron reinforcement (rear)
-
X
X
1.00
{0.04}
9
Front side frame (inner)
X
-
X
1.40
{0.06}
10
Front side frame (outer)
-
X
X
1.40
{0.06}
11
Front frame (rear) component
Torque box
-
X
X
1.20
{0.05}
Front frame (rear)
X
-
X
1.80
{0.07}
Side member
-
-
X
1.40
{0.06}
12
Wiper bracket
-
X
X
1.40
{0.06}
13
Cowl upper plate
-
X
X
1.20
{0.05}
14
Cowl side reinforcement (upper)
-
X
X
1.20
{0.05}
15
Front pillar upper reinforcement
-
-
X
0.65
{0.03}
16
Front pillar (inner)
X
-
-
1.80
{0.07}
17
Front pillar reinforcement (upper)
X
-
-
1.40
{0.06}
18
Hinge reinforcement
Upper
X
-
-
1.00
{0.04}
Lower
X
-
X
1.40
{0.06}
19
Hinge reinforcement (Inner, lower)
X
-
-
1.20
{0.05}
20
Cabin side frame (outer)
-
-
X
0.65
{0.03}
21
Side sill reinforcement
X
-
X
1.40
{0.06}
22
Roof rail (inner)
X
-
-
1.20
{0.05}
23
Center pillar (inner)
-
X
-
1.20
{0.05}
24
Center pillar reinforcement
Upper
X
-
-
2.00
{0.08}
Lower
X
-
-
2.00
{0.08}
25
Roof rail reinforcement
X
-
-
1.20
{0.05}
26
Side sill reinforcement (rear)
X
-
X
1.60
{0.06}
27
Rear pillar (inner)
-
-
-
0.60
{0.02}
28
Wheel housing (inner)
-
-
X
0.65
{0.02}
29
Suspension housing reinforcement
-
-
-
0.60
{0.02}
30
Rear fender rain rail
-
-
X
0.65
{0.03}
31
Corner plate
-
-
X
0.65
{0.03}
32
Rear fender (lower) panel
-
-
X
0.65
{0.03}
33
Front door (outer) panel
-
X
X
0.65
{0.03}
34
Rear door (outer) panel
-
X
X
0.65
{0.03}
35
Cowl panel
-
-
X
0.60
{0.02}
36
Dash (upper) panel
-
-
X
0.90
{0.04}
37
Dash (Lower) panel
-
-
X
0.80
{0.03}
38
Front header
-
-
X
0.65
{0.02}
39
Roof reinforcement No.1
-
-
-
0.50
{0.02}
40
Roof reinforcement No.2
X
-
-
1.00
{0.04}
41
Roof reinforcement No.3
-
-
-
0.50
{0.02}
42
Rear header
-
-
-
0.70
{0.03}
43
Roof corner gusset
X
-
-
1.20
{0.05}
44
Roof panel
-
-
-
0.70
{0.03}
45
Package tray
-
-
-
0.55
{0.02}
46
Trunk lid (outer) panel
Upper
-
-
X
0.65
{0.03}
Lower
-
-
X
0.60
{0.02}
47
Front fender panel
-
-
X
0.70
{0.03}
48
Tunnel reinforcement
X
-
X
0.90
{0.04}
49
Floor reinforcement
X
-
-
1.80
{0.07}
50
Front floor panel
-
-
-
0.60
{0.02}
51
Front B frame
Front
X
-
X
1.20
{0.05}
Rear
X
-
X
1.00
{0.04}
52
Side sill (inner)
Front
X
-
X
1.60
{0.06}
Rear
X
-
X
1.60
{0.06}
53
Crossmember No.2
X
-
-
0.90
{0.04}
54
Crossmember No.2.5
X
-
-
1.40
{0.06}
55
Crossmember No.3
X
-
X
1.00
{0.04}
56
Crossmember No.3 (inner)
-
-
X
0.60
{0.02}
57
Center floor panel
-
-
X
0.60
{0.02}
58
Crossmember No.4
-
-
X
0.90
{0.04}
59
Rear floor reinforcement component
Rear floor reinforcement (front)
-
X
-
0.90
{0.04}
Brace bracket
-
-
-
1.80
{0.07}
60
Trunk floor panel
-
-
X
0.60
{0.02}
61
Rear frame reinforcement
-
-
-
0.90
{0.04}
62
Floor side panel No.1 component
Reinforcement
X
-
-
1.20
{0.05}
Floor side panel No.1
-
X
X
2.00
{0.08}
63
Floor side panel No.2
-
-
X
0.65
{0.03}
64
Rear side frame component
Front
X
-
X
1.60
{0.06}
Rear
X
-
X
1.40
{0.06}
65
Rear floor cover
X
-
X
1.60
{0.06}
66
Hook bracket
-
-
X
3.20
{0.13}
67
Rear end panel component
Rear end member
-
-
-
0.60
{0.02}
Rear end panel
-
-
X
0.60
{0.02}

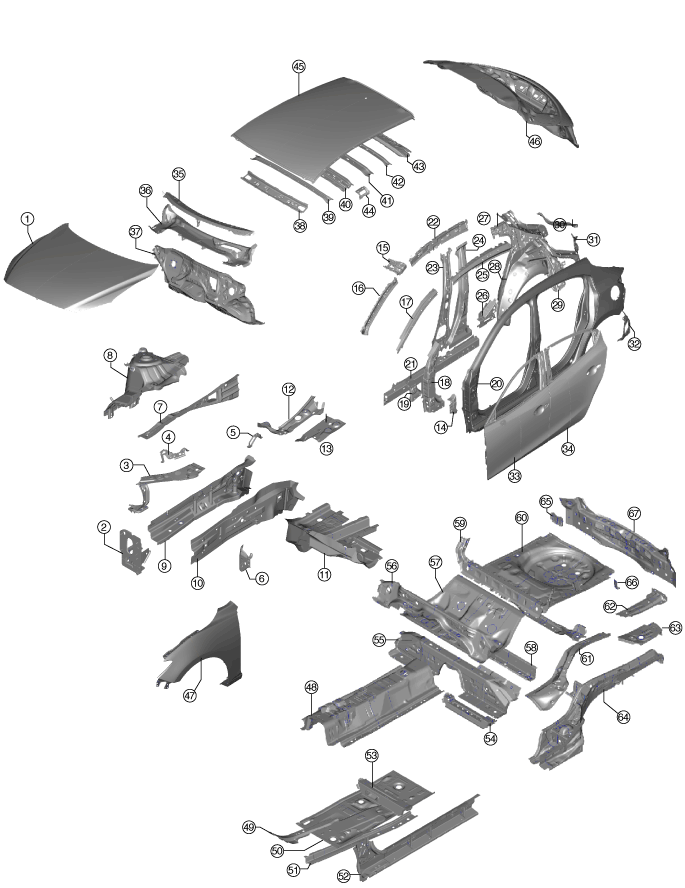

5HB

am3uub00000548

x:Applied
-:Not applied

No.

Part name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet
-
X
X
0.70
{0.03}
2
Bumper bracket
X
-
X
2.00
{0.08}
3
Shroud side member component
Shroud side stay
-
-
X
1.20
{0.05}
Shroud side panel
-
X
X
0.90
{0.04}
4
Shroud upper reinforcement
-
-
X
0.80
{0.03}
5
Front fender junction
-
-
X
0.80
{0.03}
6
Light bracket
-
-
X
1.20
{0.05}
7
Cowl side reinforcement
-
X
X
0.90
{0.04}
8
Wheel apron component
Cowl side reinforcement (lower)
-
X
X
0.80
{0.03}
Apron reinforcement No.3
X
-
X
1.20
{0.05}
Suspension reinforcement (upper)
-
X
X
2.00
{0.08}
Suspension reinforcement (lower)
-
-
X
0.80
{0.03}
Wheel apron reinforcement (rear)
-
X
X
1.00
{0.04}
9
Front side frame (inner)
X
-
X
1.40
{0.06}
10
Front side frame (outer)
-
X
X
1.40
{0.06}
11
Front frame (rear) component
Torque box
-
X
X
1.20
{0.05}
Front frame (rear)
X
-
X
1.80
{0.07}
Side member
-
-
X
1.40
{0.06}
12
Wiper bracket
-
X
X
1.40
{0.06}
13
Cowl upper plate
-
X
X
1.20
{0.05}
14
Cowl side reinforcement (upper)
-
X
X
1.20
{0.05}
15
Front pillar upper reinforcement
-
-
X
0.65
{0.03}
16
Front pillar (inner)
X
-
-
1.80
{0.07}
17
Front pillar reinforcement (upper)
X
-
-
1.40
{0.06}
18
Hinge reinforcement
Upper
X
-
-
1.00
{0.04}
Lower
X
-
X
1.40
{0.06}
19
Hinge reinforcement (Inner, lower)
X
-
-
1.20
{0.05}
20
Cabin side frame (outer)
-
-
X
0.65
{0.03}
21
Side sill reinforcement
X
-
X
1.40
{0.06}
22
Roof rail (inner)
X
-
-
1.20
{0.05}
23
Center pillar (inner)
-
X
-
1.20
{0.05}
24
Center pillar reinforcement
X
-
-
2.00
{0.08}
25
Roof rail reinforcement
X
-
-
1.20
{0.05}
26
Side sill reinforcement (rear)
X
-
X
1.60
{0.06}
27
Rear pillar (inner)
-
-
-
0.60
{0.02}
28
Wheel housing (inner)
-
-
X
0.65
{0.03}
29
Suspension housing reinforcement
-
-
-
0.60
{0.02}
30
Rear pillar (outer)
-
-
X
0.65
{0.03}
31
Corner plate
-
-
X
0.65
{0.03}
32
Rear fender (lower) panel
-
-
X
0.65
{0.03}
33
Front door (outer) panel
-
X
X
0.65
{0.03}
34
Rear door (outer) panel
-
X
X
0.65
{0.03}
35
Cowl panel
-
-
X
0.60
{0.02}
36
Dash (upper) panel
-
-
X
0.90
{0.04}
37
Dash (Lower) panel
-
-
X
0.80
{0.03}
38
Front header
-
-
X
0.65
{0.02}
39
Roof reinforcement No.1
-
-
-
0.50
{0.02}
40
Roof reinforcement No.2
X
-
-
1.00
{0.04}
41
Roof reinforcement No.3
-
-
-
0.50
{0.02}
42
Roof reinforcement No.4
-
-
-
0.50
{0.02}
43
Rear header
-
-
-
0.70
{0.03}
44
Roof corner gusset
X
-
-
1.20
{0.05}
45
Roof panel
-
-
-
0.70
{0.03}
46
Liftgate (outer) panel
Upper
-
-
X
0.70
{0.03}
Lower
-
-
X
0.60
{0.02}
47
Front fender panel
-
-
X
0.70
{0.03}
48
Tunnel reinforcement
X
-
X
0.90
{0.04}
49
Floor reinforcement
X
-
-
1.80
{0.07}
50
Front floor panel
-
-
-
0.60
{0.02}
51
Front B frame
Front
X
-
X
1.20
{0.05}
Rear
X
-
X
1.00
{0.04}
52
Side sill (inner)
Front
X
-
X
1.60
{0.06}
Rear
X
-
X
1.60
{0.06}
53
Crossmember No.2
X
-
-
0.90
{0.04}
54
Crossmember No.2.5
X
-
-
1.40
{0.06}
55
Crossmember No.3
X
-
X
1.00
{0.04}
56
Crossmember No.3 (inner)
-
-
X
0.60
{0.02}
57
Center floor panel
-
-
X
0.60
{0.02}
58
Crossmember No.4
-
-
X
0.90
{0.04}
59
Rear floor reinforcement component
Rear floor reinforcement (front)
-
X
-
0.90
{0.04}
Brace bracket
-
-
-
1.80
{0.07}
60
Trunk floor panel
-
-
X
0.60
{0.02}
61
Rear frame reinforcement
-
-
-
0.90
{0.04}
62
Floor side panel No.1 component
Reinforcement
X
-
-
1.20
{0.05}
Floor side panel No.1
-
X
X
2.00
{0.08}
63
Floor side panel No.2
-
-
X
0.65
{0.03}
64
Rear side frame component
Front
X
-
X
1.60
{0.06}
Rear
X
-
X
1.40
{0.06}
65
Rear floor cover
X
-
X
1.60
{0.06}
66
Hook bracket
-
-
X
3.20
{0.13}
67
Rear end panel component
Rear end member
-
-
-
0.60
{0.02}
Rear end panel
-
-
X
0.60
{0.02}
