ULTRA HIGH-TENSION STEEL [CONSTRUCTION]

• Ultra high-tensile steel plates have enhanced tensile strength compared to previous high-tensile steel plates.

• Because the strength is maintained even though the plates are thin-walled, the ultra high-tensile steel plates are used for the frames and the main frame parts which form the cabin, reducing the weight of the vehicle.

• Enhanced shock absorption has improved the safety.

• Because the ultra high-tensile steel is hard and it may be difficult to reform, when extracting the damaged part using a frame repair machine, perform the work verifying that other parts are not affected.

• When drilling welded parts, use a well-ground drill bit.

• After welding, inspect the weld strength. If adhesion is poor, perform arc welding (plug welding).

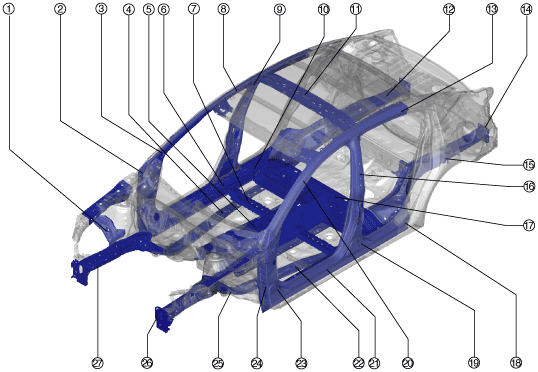

No.	Part name	Strength (MPa) {kgf/cm², psi}
1	Apron reinforcement No.3	590 {6016, 85572}
2	Hinge reinforcement (upper)	590 {6016, 85572}
3	Front pillar (inner)	590 {6016, 85572}
4	Front B frame	590 {6016, 85572}
5	Tunnel reinforcement	590 {6016, 85572}
6	Side sill (inner, front)	590 {6016, 85572}
7	Side sill (inner, rear)	780 {7954, 113130}
8	Roof rail (inner)	590 {6016, 85572}
9	Roof corner gusset	590 {6016, 85572}
10	Crossmember No.2.5	780 {7954, 113130}
11	Roof reinforcement No.2	590 {6016, 85572}
12	Floor side panel No.1 reinforcement	590 {6016, 85572}
13	Roof rail reinforcement	780 {7954, 113130}
14	Rear floor cover	780 {7954, 113130}
15	Rear side frame (front)	590 {6016, 85572}
16	Center pillar reinforcement (upper)	980 {9993, 142137}
17	Crossmember No.3	780 {7954, 113130}
18	Side sill reinforcement (rear)	590 {6016, 85572}
19	Center pillar reinforcement (lower)	590 {6016, 85572}
20	Front pillar reinforcement (upper)	780 {7954, 113130}
21	Side sill reinforcement	980 {9993, 142137}
22	Floor reinforcement	780 {7954, 113130}
23	Hinge reinforcement (lower)	590 {6016, 85572}
24	Hinge reinforcement (inner, lower)	590 {6016, 85572}
25	Front frame (rear)	590 {6016, 85572}
26	Bumper bracket	590 {6016, 85572}
27	Front side frame (inner)	590 {6016, 85572}

No.	Part name	Strength (MPa) {kgf/cm², psi}
1	Apron reinforcement No.3	590 {6016, 85572}
2	Hinge reinforcement (upper)	590 {6016, 85572}
3	Front pillar (inner)	590 {6016, 85572}
4	Front B frame	590 {6016, 85572}
5	Tunnel reinforcement	590 {6016, 85572}
6	Side sill (inner, front)	590 {6016, 85572}
7	Side sill (inner, rear)	780 {7954, 113130}
8	Roof rail (inner)	590 {6016, 85572}
9	Roof corner gusset	590 {6016, 85572}
10	Crossmember No.2.5	780 {7954, 113130}
11	Roof reinforcement No.2	590 {6016, 85572}
12	Floor side panel No.1 reinforcement	590 {6016, 85572}
13	Roof rail reinforcement	780 {7954, 113130}
14	Rear floor cover	780 {7954, 113130}
15	Rear side frame (front)	590 {6016, 85572}
16	Center pillar reinforcement	1500 {15296, 217557}
17	Crossmember No.3	780 {7954, 113130}
18	Side sill reinforcement (rear)	590 {6016, 85572}
19	Front pillar reinforcement (upper)	780 {7954, 113130}
20	Side sill reinforcement	980 {9993, 142137}
21	Floor reinforcement	780 {7954, 113130}
22	Hinge reinforcement (lower)	590 {6016, 85572}
23	Hinge reinforcement (inner, lower)	590 {6016, 85572}
24	Front frame (rear)	590 {6016, 85572}
25	Bumper bracket	590 {6016, 85572}
26	Front side frame (inner)	590 {6016, 85572}
