ROOF PANEL REMOVAL [PANEL REPLACEMENT]

id098008744300

Symbol Mark

am6zzb00000480

Removal Procedure

Caution

•  Remove the curtain air bag module to prevent damage before servicing.

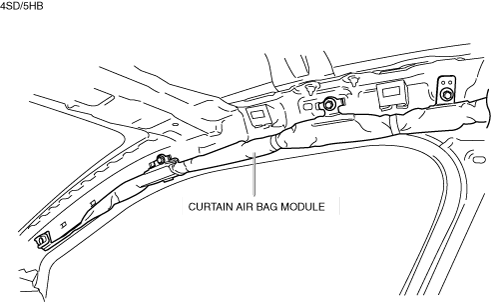

Front-side

am3uub00000472

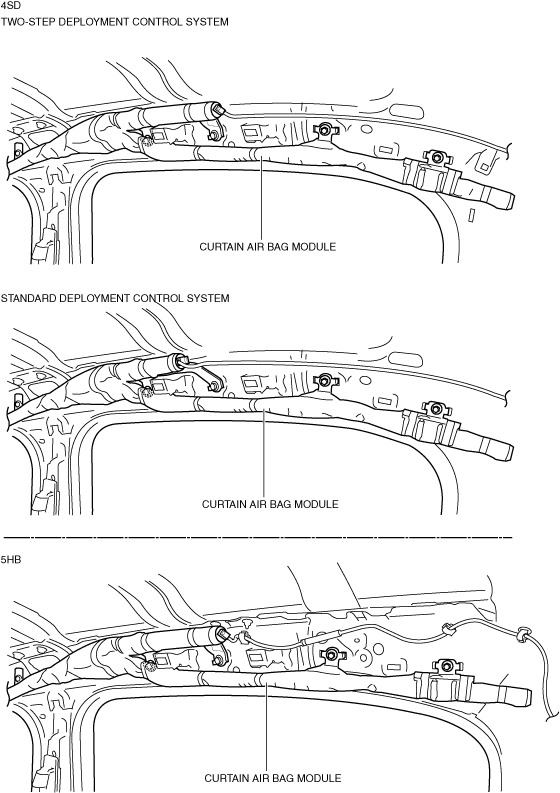

Rear-side

am3uub00000473

4SD (without sunroof)

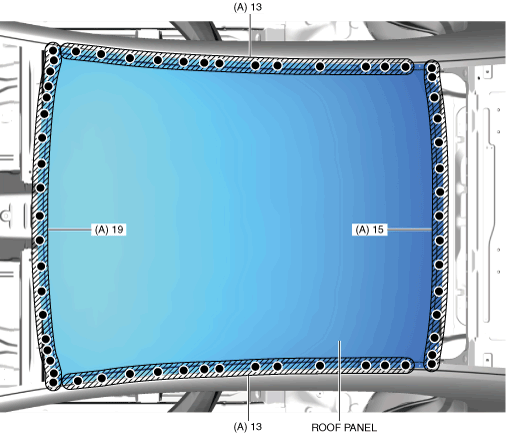

1.  Drill the 60 locations indicated by (A) shown in the figure.

am3uub00000566

2.  Remove the roof panel.

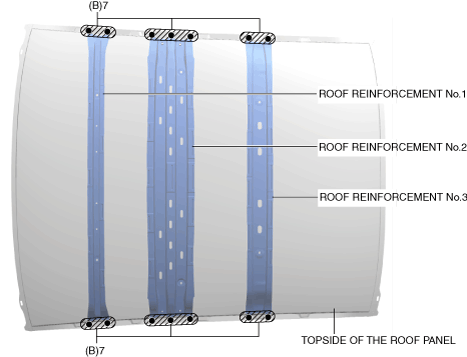

3.  Drill the spot welded 14 locations indicated by (B) shown in the figure from the topside of the roof panel and remove the roof reinforcement No.1, roof reinforcement No.2, and roof reinforcement No.3.

Note

•  Be careful not to damage the roof reinforcement during installation as it will be reused.

am3zzb00000780

4SD (with sunroof)

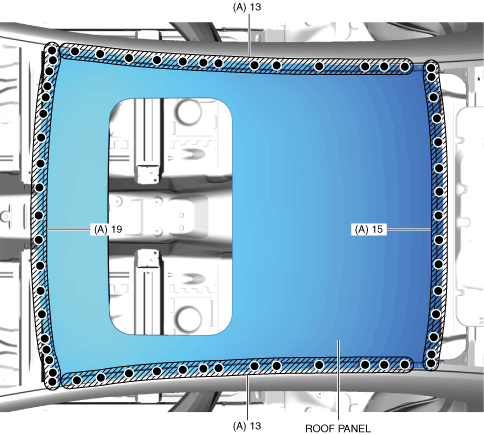

1.  Drill the 60 locations indicated by (A) shown in the figure.

am3uub00000567

2.  Remove the roof panel.

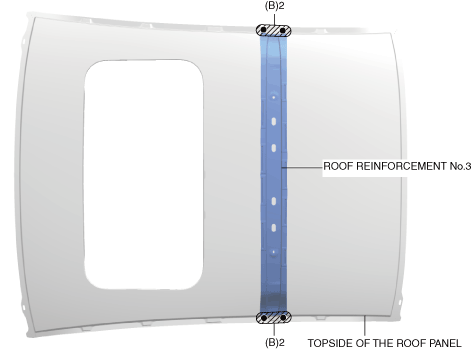

3.  Drill the spot welded 4 locations indicated by (B) shown in the figure from the topside of the roof panel and roof reinforcement No.3.

Note

•  Be careful not to damage the roof reinforcement during installation as it will be reused.

am3zzb00000781

5HB (without sunroof)

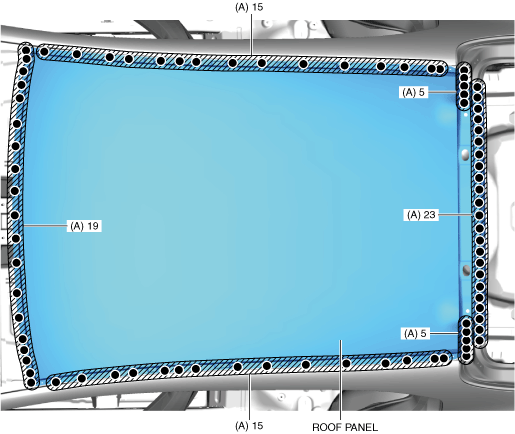

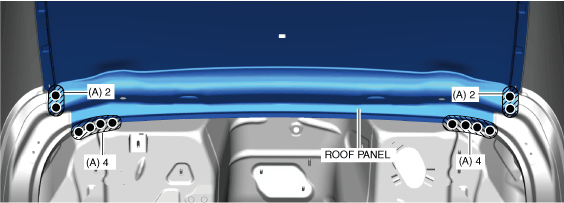

1.  Drill the 94 locations indicated by (A) shown in the figure.

am3uub00000568

am3zzb00000222

2.  Remove the roof panel.

3.  Drill the spot welded 18 locations indicated by (B) shown in the figure from the topside of the roof panel and remove the roof reinforcement No.1, roof reinforcement No.2, roof reinforcement No.3 and roof reinforcement No.4

Note

•  Be careful not to damage the roof reinforcement during installation as it will be reused.

am3zzb00000782

5HB (with sunroof)

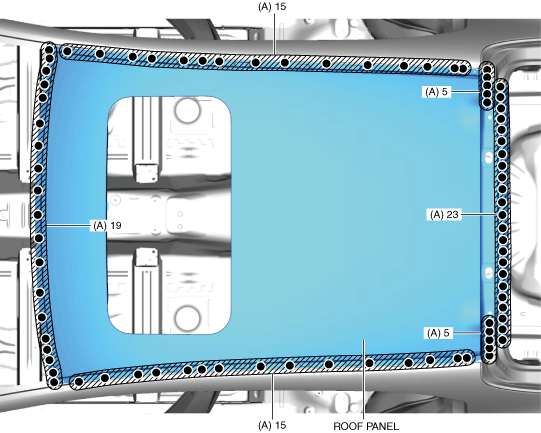

1.  Drill the 94 locations indicated by (A) shown in the figure.

am3uub00000569

am3zzb00000222

2.  Remove the roof panel.

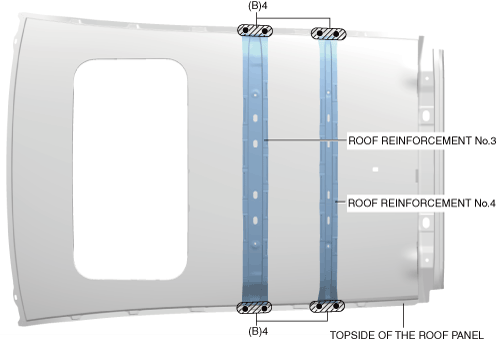

3.  Drill the spot welded 8 locations indicated by (B) shown in the figure from the topside of the roof panel and remove the roof reinforcement No.3 and roof reinforcement No.4

Note

•  Be careful not to damage the roof reinforcement during installation as it will be reused.

am3zzb00000783
