SOUND DUMPING SHEET REPLACEMENT [WATER-PROOF AND RUST PREVENTIVE]


id098009755700

•  After repairing the body, attach the sound dumping sheet to the location shown in the figure for noise insulation.

4SD


Except Mexico, Thailand Manufacturing (European (L.H.D.), General (L.H.D.) specs.)

With Bose®

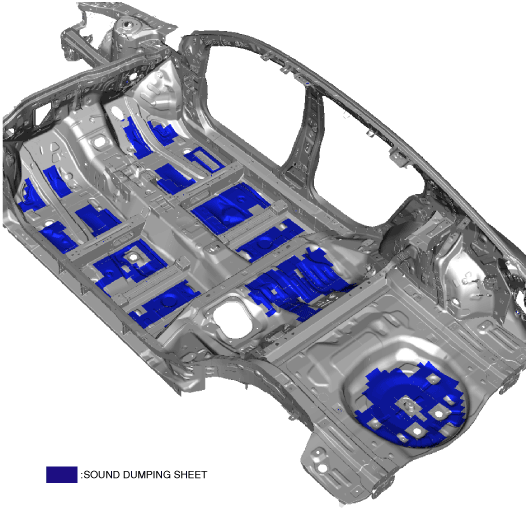

am3zzb00000094

Without Bose®

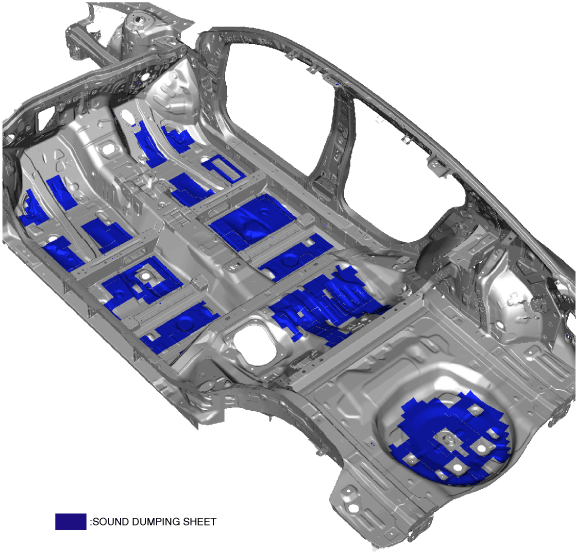

am3zzb00000095


Except Mexico, Thailand Manufacturing (European (R.H.D.), Australian, General (R.H.D.) specs.)

With Bose®

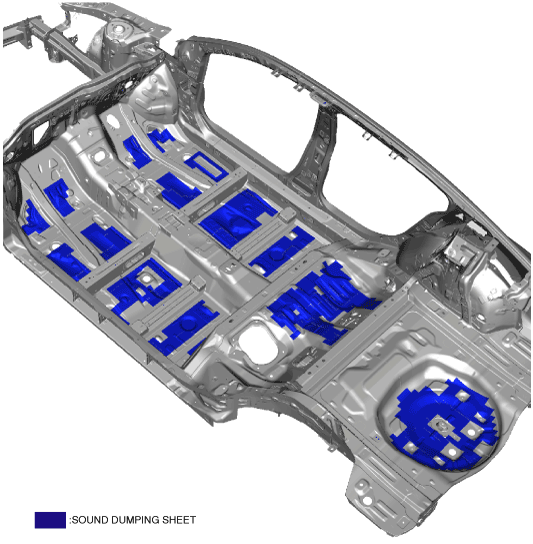

am3zzb00000096

Without Bose®

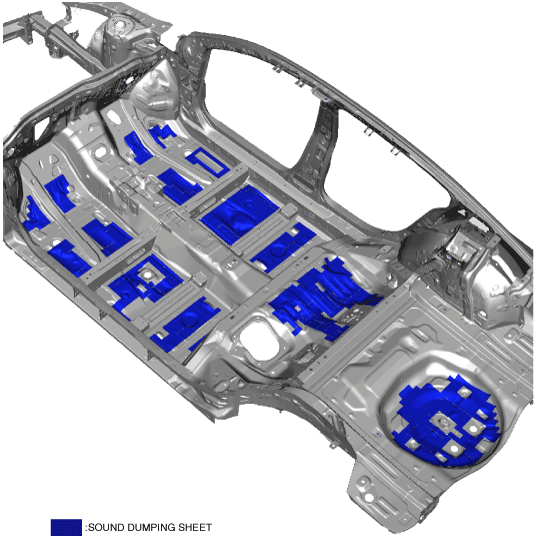

am3zzb00000097


Mexico, Thailand Manufacturing

Without Bose®

am3zzb00000163


5HB


Except Mexico, Thailand Manufacturing (European (L.H.D.) specs.)

With Bose®

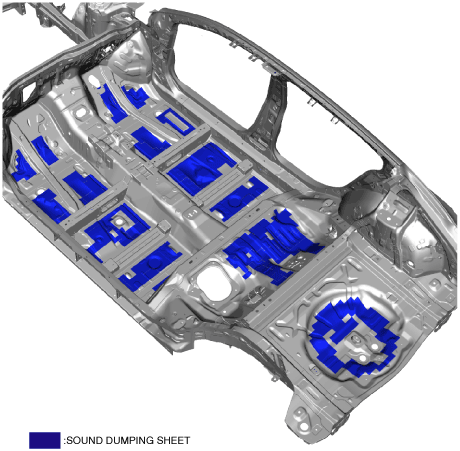

am3zzb00000106


Except Mexico, Thailand Manufacturing (European (L.H.D.), General (L.H.D.) specs.)

Without Bose®

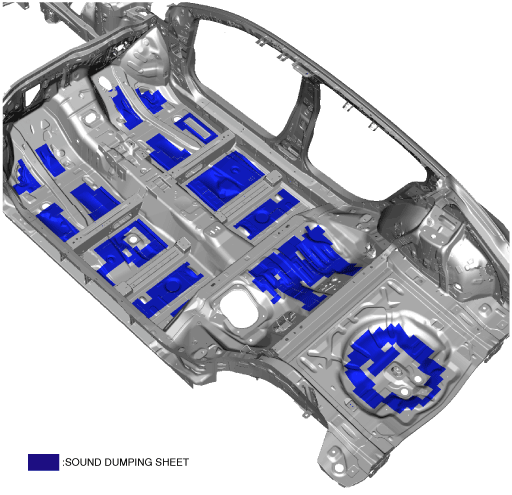

am3zzb00000107


Except Mexico, Thailand Manufacturing (European (L.H.D.) specs. European (R.H.D.), Australian, General (R.H.D.) specs.)

With Bose®

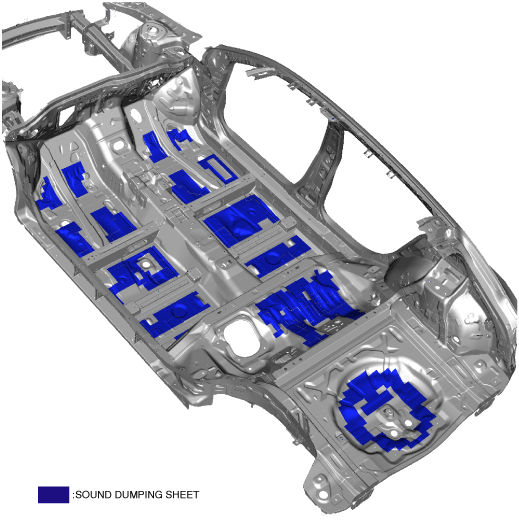

am3zzb00000100

Without Bose®

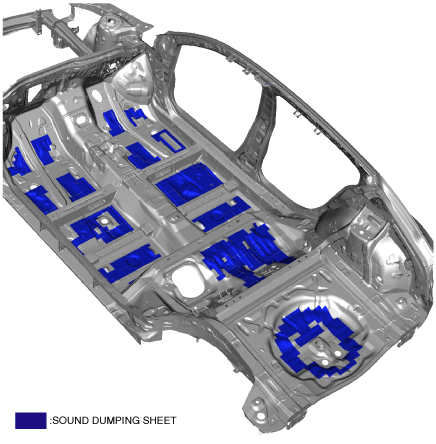

am3zzb00000101


Mexico, Thailand Manufacturing

Without Bose®

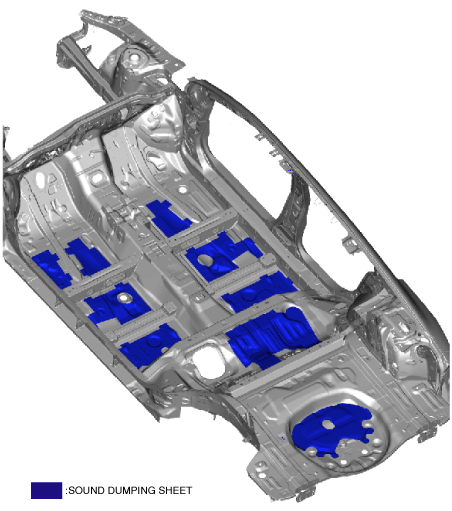

am3zzb00000164
