SHIFT SOLENOID D, AND E (ON/OFF TYPE) FUNCTION

id051700110700

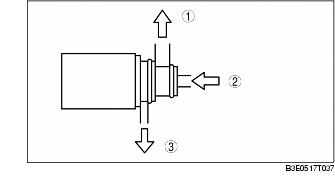

• ON/OFF type solenoid valve switches the supply drain of output port according to the electrical current flow switching.


1	Output port
2	Supply port (solenoid reducing pressure)
3	Drain
