BEARING PRELOAD ADJUSTMENT

id051500802700

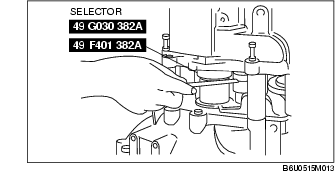

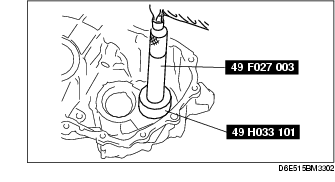

1. Install the primary and secondary shaft bearing races into the transaxle case (shims removed).

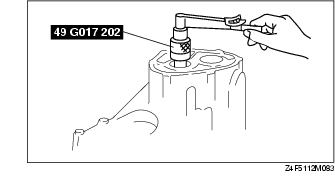

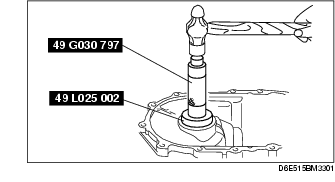

2. Mount the clutch housing onto the transaxle hanger, and set the differential bearing race into the clutch housing. Position a piece of pipe against the bearing race and tap it in until it contacts the clutch housing.

3. Set the bearing races into the SSTs (selector) as shown in the figure.

Note

• Turn the selector to eliminate the gap indicated by the arrow in the figure.

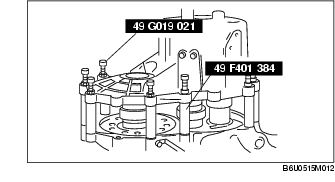

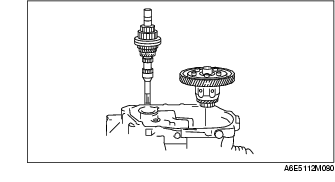

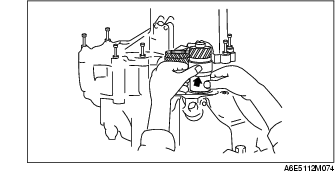

4. Set the differential component into the clutch housing, and set the bearing race and the SST (selector) on the differential. Set the SSTs (selector) for the primary and secondary shaft in the clutch housing. Mount the shaft gear assemblies as shown in the figure.

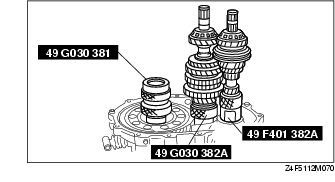

5. Set the SST (collars) in the positions shown in the figure.

6. Install the transaxle case and tighten the SST (bolts) to the specified torque.

Tightening torque

37.3-52.0 N·m {3.9-5.3 kgf·m, 28.2-38.3 ft·lbf}

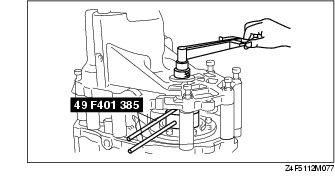

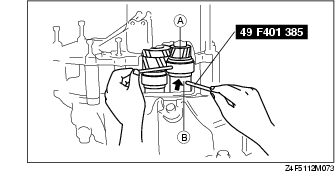

7. To seat the bearings, mount the SST (bars) on parts A and B of the selectors, and turn the selectors so the gaps are widened. Then turn the SST in the reverse direction until the gaps are eliminated.

8. Manually expand the selector until it no longer turns by hand.

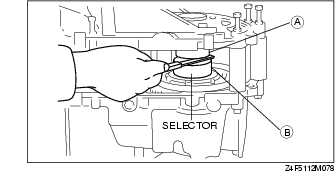

9. Use a feeler gauge to measure the gap in the SST (selector).

Caution

• Measure the gap around the entire circumference of the selector.

10. Take the maximum reading and determine the shim to used as follows.

Primary shaft adjustment shim

• Select the thinnest allowable shim from the table to obtain standard clearance.

Standard clearance

0-0.05 mm {0-0.002 in}

Example

Reading from step 9: 0.57 mm {0.022 in}

Shim selecting range

(0.57 mm {0.022 in}-0.05 mm {0.002 in})-(0.57 mm {0.022 in}-0 mm {0 in}) = 0.52 mm {0.020 in}-0.57 mm {0.022 in}

Shim

0.55 mm {0.022 in}

Secondary shaft adjustment shim

• Select the thinnest allowable shim from the table to obtain standard clearance.

Tightening amount

0.03-0.08 mm {0.001-0.003 in}

Example

Reading from step 9: 0.57 mm {0.022 in}

Shim selecting range

(0.57 mm {0.022 in} + 0.03 mm {0.001 in})-(0.57 mm {0.022 in} + 0.08 mm {0.003 in}) = 0.60 mm {0.024 in}-0.65 mm {0.026 in}

Shim

0.60 mm {0.024 in}

Thickness of shim

mm {in}


0.20 {0.008}	0.25 {0.010}	0.30 {0.012}	0.35 {0.014}
0.40 {0.016}	0.45 {0.018}	0.50 {0.020}	0.55 {0.022}
0.60 {0.024}	0.65 {0.026}	0.70 {0.028}	-

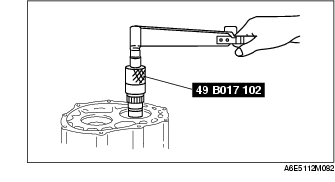

11. Install the SST and a pull scale or torque wrench.

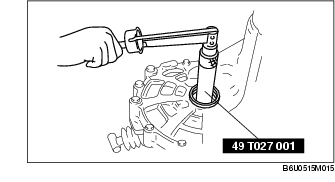

12. Adjust the clearance of the SST (selector) to obtain the specified preload/pull scale reading.

Note

• Read the preload when the differential starts to turn.

• Measure several times and calculate the average value.

Preload

0.5 N·m {5.0 kgf·cm, 4.3 in·lbf}

13. Use a feeler gauge to measure the gap in the selector for the differential.

14. Add 0.15 mm {0.006 in} to the measured clearance and select the combination of shims closest in value to that measurement.

Example

0.32 mm {0.013 in}

0.32 mm {0.013 in} + 0.15 mm {0.006 in} = 0.47 mm {0.019 in}

Nearest shim (on thick side) to 0.47 mm {0.019 in} is 0.50 mm {0.020 in}

Thickness of shim

mm {in}


0.1 {0.004}	0.20 {0.008}	0.25 {0.010}	0.30 {0.012}
0.35 {0.014}	0.40 {0.016}	0.45 {0.018}	0.50 {0.020}
0.55 {0.022}	0.60 {0.024}	0.65 {0.026}	0.70 {0.028}
0.75 {0.030}	0.80 {0.031}	0.85 {0.033}	0.90 {0.035}
0.95 {0.037}	1.0 {0.039}	1.05 {0.041}	1.10 {0.043}
1.15 {0.045}	1.20 {0.047}	-	-
