ON-BOARD DIAGNOSTIC OUTLINE [ZY, Z6]
id0102c7111300
Features
To meet EOBD regulations
• Diagnostic test modes adopted
Improved serviceability
• DTCs adopted
• KOEO/KOER self-test function adopted
• PID/DATA monitor function adopted
• Simulation test function adopted

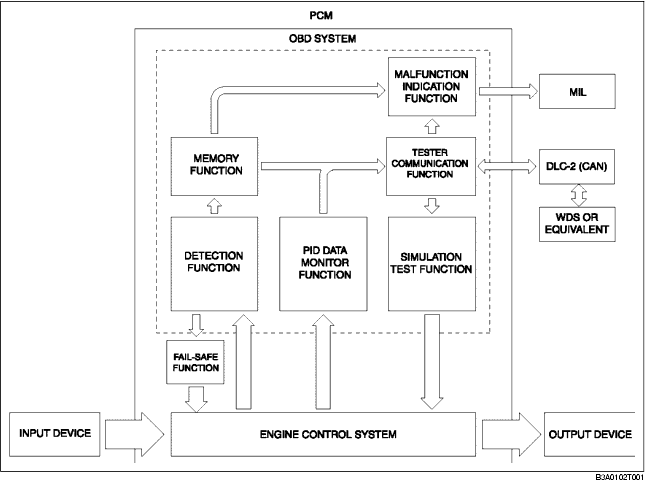

Block Diagram
