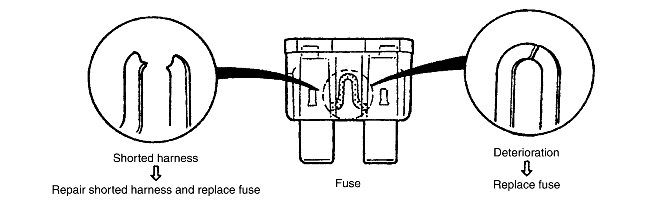

Damaged fuse
|
Related wiring harness
|
|
IG KEY1
(30 A)
|
IG KEY1 fuse
• Ignition switch
-
- ENGINE fuse
|
|
ENGINE
(20 A)
|
ENGINE fuse
• Main relay
• Ignition coil No.1
• Ignition coil No.2
• Ignition coil No.3
• Ignition coil No.4
• Condenser
|
|
IG KEY2
(30 A)
|
IG KEY2 fuse
• Ignition switch
|
|
ENG +B
(10 A)
|
ENG +B fuse
• PCM
|
|
ENGINE
(30 A)
|
ENGINE fuse
• Main relay
-
- EGI INJ1 fuse
-
- EGI INJ2 fuse
-
- ENG BAR1 fuse
-
- ENG BAR2 fuse
|
|
EGI INJ1
(10 A)
|
EGI INJ1 fuse
• Fuel injector No.1
• Fuel injector No.2
• Fuel injector No.3
• Fuel injector No.4
|
|
EGI INJ2
(10 A)
|
EGI INJ2 fuse
• PCM
|
|
ENG BAR1
(10 A)
|
ENG BAR1 fuse
• EGR valve
• Variable intake-air solenoid valve
• Variable tumble solenoid valve
• Purge solenoid valve
• MAF sensor
• Fuel pump relay
|
|
ENG BAR2
(10 A)
|
ENG BAR2 fuse
• HO2S (front)
• HO2S (rear)
|
|
BTN
(40 A)
|
BTN fuse
• OBD fuse
|
|
OBD
(10 A)
|
OBD fuse
• DLC-2
|
|
FUEL PUMP
(15 A)
|
FUEL PUMP fuse
• Fuel pump relay
|
|
FAN
(40 A)
|
FAN fuse
• Fan control module
|
