CYLINDER HEAD COVER CONSTRUCTION [LF, L3]


id0110a2100200

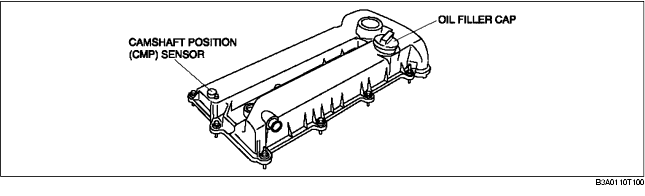

• The cylinder head cover is made of integrated plastic, which is lightweight and sound absorbent.

• The oil filler cap is a bayonet type. The boss for installing the camshaft position (CMP) sensor is provided at the rear of the cylinder head cover.

• The L3 engine has a hole for installing the oil control valve (OCV).
