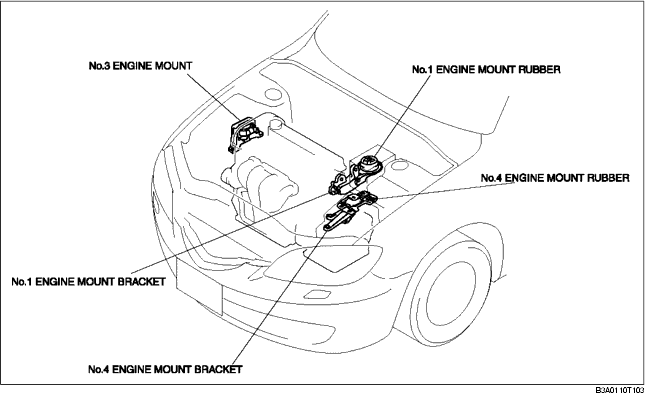

ENGINE MOUNT OUTLINE [LF, L3]


id0110a2101400

• The pendulum-type layout of the engine mounting reduces noise in the cabin.

• The engine is supported at three points and simplification of engine mount composition has been attained.

• An oil-filled No.3 engine mount rubber has been adopted to reduce noise and vibration in the cabin.

• The surface of the No.3 engine mount is made of aluminium alloy to decrease weight.
