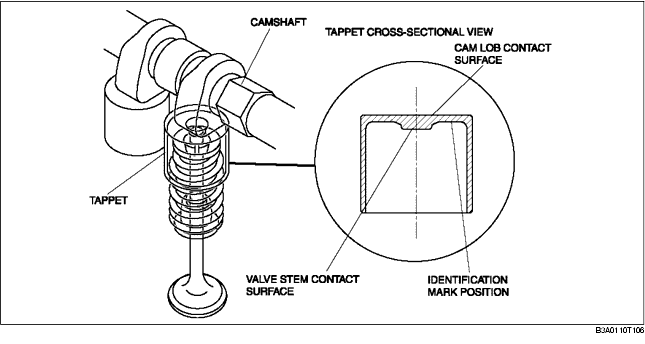

TAPPET CONSTRUCTION [LF, L3]


id0110a2102200

• The tappet is a shimless tappet which is integrated with the shim.

• The tappet surface is phosphate-coated to in order to improve initial familiarity nature.

• The valve clearance can be adjusted by replacing the tappet. There are 35 kinds of tappets depending on the thickness. The tappet kind can be determined by the engraved identification mark.

Tappet Specification

Discernment mark

Tappet thickness (mm {in})

The number of jumps (mm {in})

725-625
3.725-3.625 {0.1467-0.1427}
0.025 {0.00098}
602-122
3.602-3.122 {0.1418-0.1229}
0.020 {0.00078}
100-000
3.100-3.000 {0.1220-0.1181}
0.025 {0.00098}
