VARIABLE VALVE TIMING MECHANISM CONSTRUCTION [L3]
id0110a21207a4

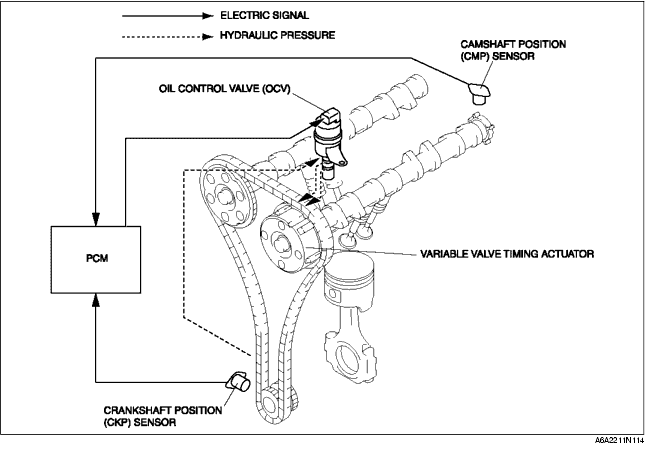

• The variable valve timing mechanism consists of a variable valve timing actuator, oil control valve (OCV), CKP sensor, CMP sensor, and the PCM.

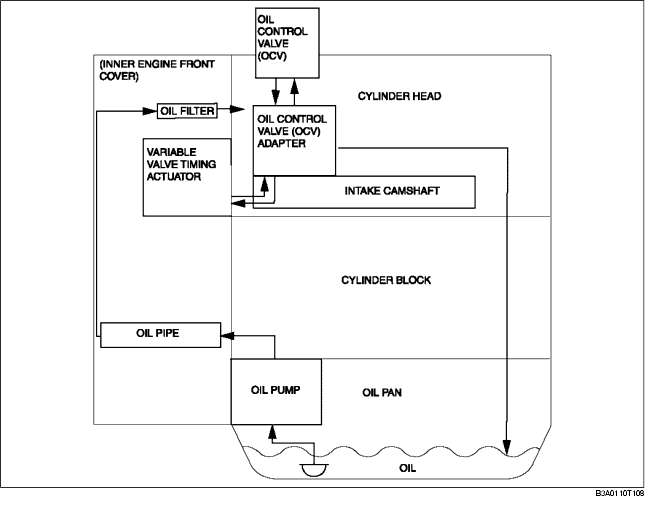

Hydraulic Pressure Flow Diagram
Component and function
|
Variable valve timing actuator
|
• Continuously modifies the phases of the intake camshaft and crankshaft using hydraulic pressure from the oil control valve (OCV).
|
|
Oil control valve (OCV)
|
• Operated by current (duty signal) from the PCM. Switches the hydraulic oil passages to the variable valve timing actuator.
|
|
CKP sensor
|
• Inputs engine revolution signal to the PCM.
|
|
CMP sensor
|
• Inputs cylinder identification signal to the PCM.
|
|
PCM
|
• Controls the oil control valve (OCV) so that optimum valve timing is obtained according to engine operation conditions.
|
