PLUG HOLE PLATE REMOVAL/INSTALLATION [LF, L3]


id0110a2803900

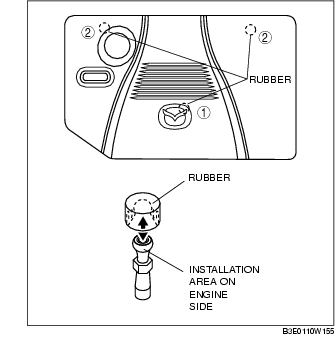

1. Remove the plug hole plate in the order indicated in the figure.

Note
• Lift off and remove the plug hole plate from the installation areas as shown in the figure.

2. Install the plug hole plate in the reverse order of removal.
