CYLINDER HEAD COVER CONSTRUCTION [ZY, Z6]


id0110b0100200

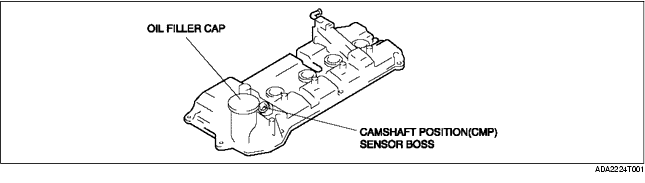

• The cylinder head cover is made of integrated aluminum alloy, which is lightweight and sound absorbent.

• The oil filler cap is a screw-in type. The boss for installing the camshaft position (CMP) sensor is provided at the front of the cylinder head cover.
