PISTON, PISTON RING, PISTON PIN CONSTRUCTION [ZY, Z6]

id0110b0100600

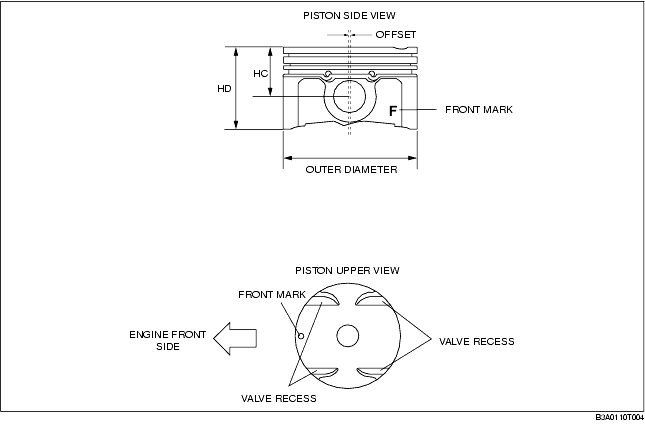

• The pistons are made of heat resistant, highly conductive aluminium alloy.

• Offset pistons are used to reduce piston-slapping noise.

• To prevent the piston from being reassembled in the wrong direction, an "F" mark is located on the side of piston.

• The pistons have valve recesses on the intake and exhaust sides.

• The piston skirt is coated with graphite to reduce friction. (if equipped)

Piston specification


Item		Specification
Item		ZY		Z6
Outer diameter	(mm {in})	77.970-78.004 {3.0697-3.0710}
Offset quantity	(mm {in})	0.5 {0.0197}^*1	0.8 {0.0315}^*2	0.5 {0.0197}
Compression height: HC	(mm {in})	26.83-26.93 {1.059-1.060}		29.68-29.78 {1.1685-1.1724}
Piston height: HD	(mm {in})	45.38 {1.787}		48.23 {1.8988}

^*1 :

Piston with no coating in the skirt area

^*2 :

Piston with a coating in the skirt area

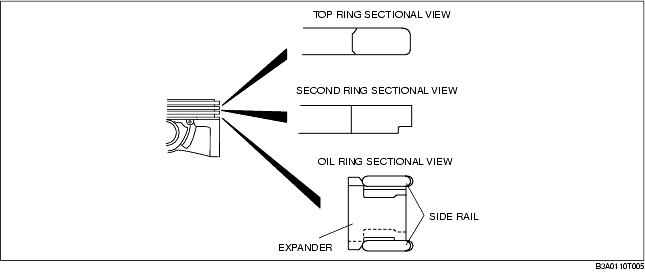

• The following piston rings have been adopted: A barrel face ring for the top ring, a taper-under cut ring for the second ring, two side rails and an expander for the oil ring. Also, low tensile load oil rings have been adopted for friction reduction and fuel consumption improvement.

• The piston pin is made of chrome steel alloy with superior rigidity.
