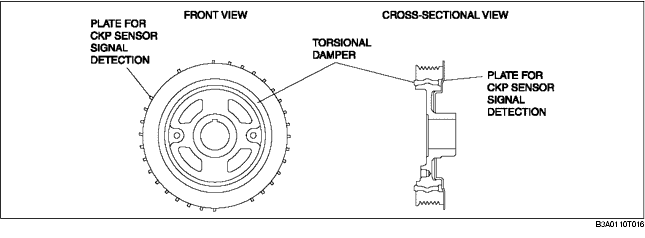

CRANKSHAFT PULLEY CONSTRUCTION [ZY, Z6]


id0110b0101800

• A crankshaft position (CKP) signal detecting plate has been adopted for the crankshaft pulley.

• A torsional damper, which prevents the crankshaft from wobbling, has also been adopted on the crankshaft.
