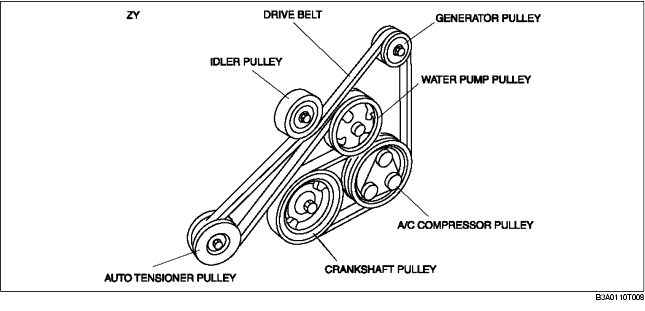

DRIVE BELT CONSTRUCTION [ZY, Z6]


id0110b0102500

• A serpentine-type drive belt with a V-ribbed belt to drive the supplemental units has been adopted. This shortens the engine length and improves serviceability.

• A drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain optimal drive belt tension.
