VARIABLE VALVE TIMING MECHANISM CONSTRUCTION [ZY, Z6]
id0110b0120700

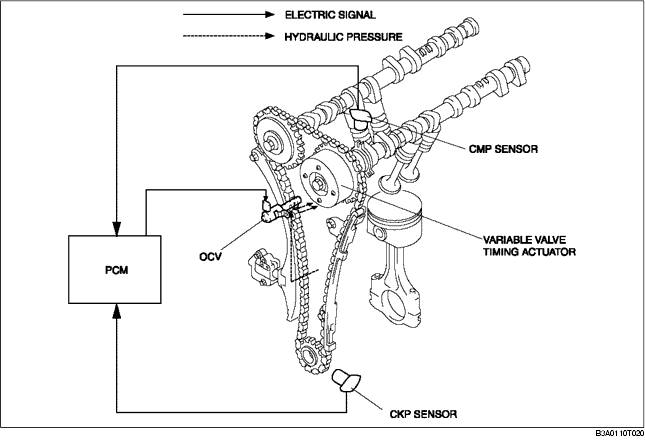

• The variable valve timing mechanism consists of a variable valve timing actuator, OCV, CKP sensor, CMP sensor, and the PCM.

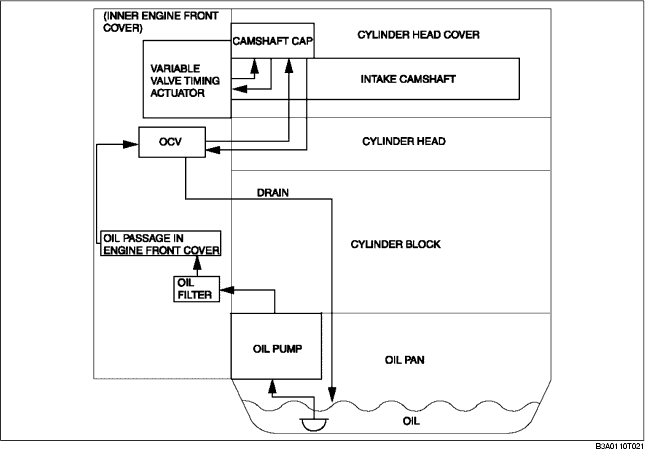

Hydraulic Pressure Flow Diagram
Component and function
|
Variable valve timing actuator
|
• Continuously modifies the phases of the intake camshaft and crankshaft at the forward end of the intake camshaft using hydraulic pressure from the OCV.
|
|
OCV
|
• Operated by current (duty signal) from the PCM. Controls the hydraulic oil passages to the variable valve timing actuator.
|
|
CKP sensor
|
• Inputs engine revolution signal to the PCM.
|
|
CMP sensor
|
• Inputs cylinder identification signal to the PCM.
|
|
PCM
|
• Controls the OCV so that optimum valve timing is obtained according to engine operation conditions.
|
