OIL FILTER CONSTRUCTION [LF, L3]


id0111001008b5

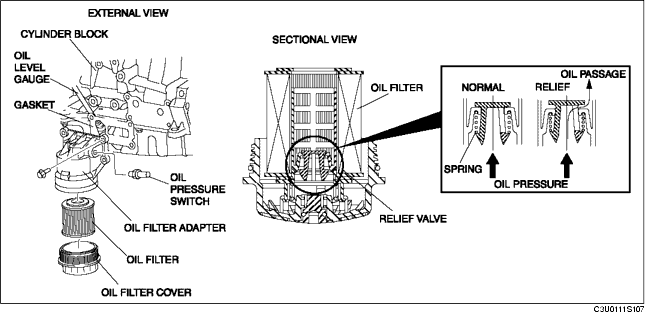

Cartridge Type

Oil filter specs.

Item

Specification

Outer diameter
(mm {in})
65.2-65.8 (2.57-2.59}
Height
(mm {in})
72.6-74.4 {2.86-2.92}

• The oil filter is attached to the right side of the oil level gauge on cylinder block.

• The oil filter adapter has been adopted for weight reduction. The oil pressure switch is installed on the oil filter adapter.

• A resin oil filter has been adopted for weight reduction, A drain plug has been installed on the bottom of the oil filter to improve replacement serviceability.

• An environment-friendly oil filter made of incinerable polyester has been adopted. Only the filter paper needs to be replaced.

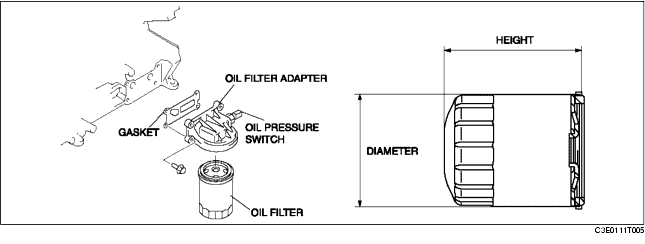

Spin-on Type

• The oil filter is full-flow paper element type with an outer diameter of 76.2 mm {3.00 in} and height of 94.0 mm {3.70 in}.

• An aluminum oil filter adapter has been adopted for weight reduction. The oil pressure switch is installed on the oil filter adapter.
