LUBRICATION SYSTEM LOCATION INDEX [ZY, Z6]

id0111008001a0

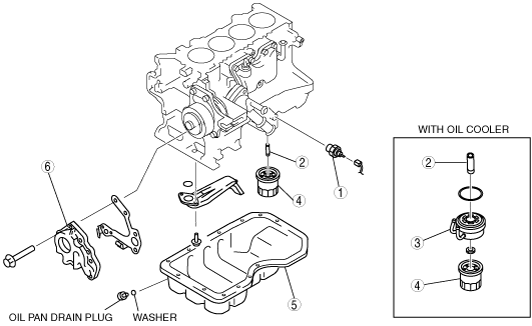

am3zzw00010368

1	Oil pressure switch (See OIL PRESSURE INSPECTION [ZY, Z6].)
2	Oil filter joint (See OIL FILTER JOINT REMOVAL/INSTALLATION [ZY, Z6].)
3	Oil cooler (with oil cooler) (See OIL COOLER REMOVAL/INSTALLATION [WITH OIL COOLER].)
4	Oil filter (See OIL FILTER REPLACEMENT [ZY, Z6].)
5	Oil pan (See OIL PAN REMOVAL/INSTALLATION [ZY, Z6].)
6	Oil pump (See OIL PUMP REMOVAL/INSTALLATION [ZY, Z6].) (See OIL PUMP DISASSEMBLY/ASSEMBLY [ZY, Z6].) (See OIL PUMP INSPECTION [ZY, Z6].)
