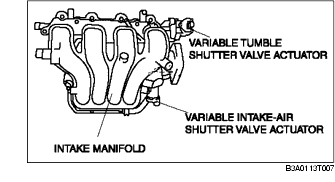

INTAKE MANIFOLD CONSTRUCTION [ZY, Z6]


id0113b0100800

• Mainly consists of the variable intake-air shutter valve actuator and variable tumble shutter valve actuator.

• The intake manifold is made of hard plastic for weight reduction.

• By lengthening the intake pipe, charging efficiency at low to middle engine speeds is enhanced resulting in higher torque.
