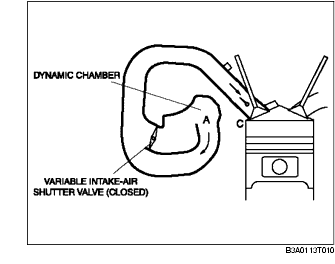

• The variable intake-air shutter valve is closed by variable intake-air shutter valve actuator operation.
• Under this condition, the effective intake manifold length is from the intake valve to the dynamic chamber (A-C). An inertia charging effect is obtained due to this elongated intake manifold length, air intake volume in the cylinder increases, and higher torque is obtained at low to medium engine speeds.

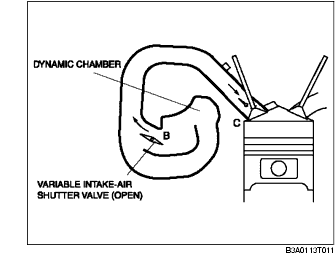

• The variable intake-air shutter valve is opened by variable intake-air shutter valve actuator operation.
• Under this condition, the effective intake manifold length is from the intake valve to the chamber (B-C). The intake air inertia effect is obtained at high engine speeds due to this shortened intake passage, increasing intake airflow amount in the cylinder, and higher torque at high engine speeds is obtained.
