ACCELERATOR PEDAL REMOVAL/INSTALLATION [ZY, Z6]

id0113b0801400

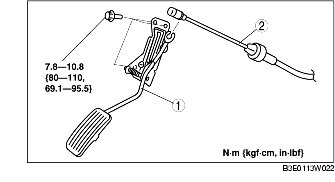

1. Remove in the order indicated in the table.

1
Accelerator pedal
2
Accelerator cable

2. Install in the reverse order of removal.

3. Adjust the accelerator cable. (See ACCELERATOR CABLE INSPECTION/ADJUSTMENT [ZY, Z6].)
