VARIABLE INTAKE-AIR SHUTTER VALVE ACTUATOR INSPECTION [ZY, Z6]
id0113b0803000
Operation Inspection
1. Disconnect the negative battery cable.
2. Remove the variable intake-air shutter valve actuator.

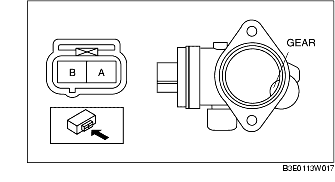

3. Connect the battery positive voltage to terminal A or B, and verify that the gear moves.
-
• If there is no malfunction, carry out the "Circuit Open/Short Inspection".
-
• If there is any malfunction, replace the variable intake-air shutter valve actuator.
|
Terminal
|
Gear rotation direction
|
|
A
|
B
|
|
B+
|
GND
|
Counterclockwise
|
|
GND
|
B+
|
Clockwise
|
Circuit Open/Short Inspection

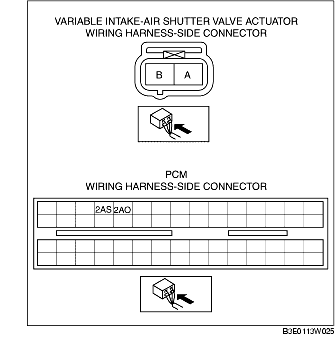

1. Inspect the following wiring harnesses for an open or short circuit. (Continuity check)
Open circuit
-
• If there is no continuity, the circuit is open. Repair or replace the wiring harness.
-
- Variable intake-air shutter valve actuator terminal A and PCM terminal 2AO
-
- Variable intake-air shutter valve actuator terminal B and PCM terminal 2AS
Short circuit
-
• If there is continuity, the circuit is shorted. Repair or replace the wiring harness.
-
- Variable intake-air shutter valve actuator terminal A and power supply
-
- Variable intake-air shutter valve actuator terminal A and body GND
-
- Variable intake-air shutter valve actuator terminal B and power supply
-
- Variable intake-air shutter valve actuator terminal B and body GND
