ACCELERATOR PEDAL REMOVAL/INSTALLATION [LF, L3]

id0113b3801400

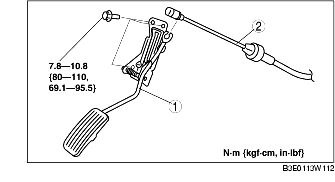

1. Remove in the order indicated in the table.

1
Accelerator pedal
2
Accelerator cable

2. Install in the reverse order of removal.

3. Adjust the accelerator cable. (See ACCELERATOR CABLE INSPECTION/ADJUSTMENT [LF, L3].)
