VARIABLE INTAKE-AIR SHUTTER VALVE ACTUATOR INSPECTION [LF, L3]

id0113b3803000

1. Remove the air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF, L3].)

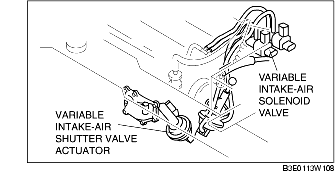

2. Disconnect the vacuum hose from the variable intake-air shutter valve actuator.

LF

L3

3. Connect a vacuum pump to the variable intake-air shutter valve actuator.

4. Apply vacuum and verify that the rod moves.

• If the rod dose not move, replace the intake manifold.

Vacuum

kPa {mmHg, inHg}

Rod movement

Below -2.7 {-21, -0.9 }
Not operate
Above -33.4 {-251, -9.89 }
Fully pulled
