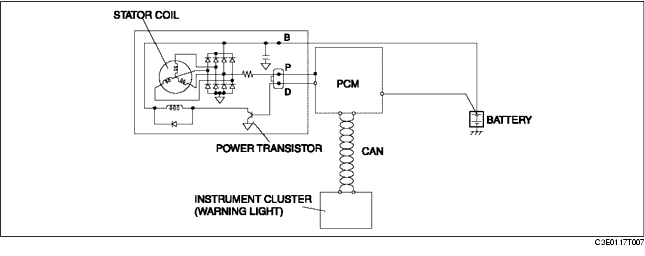

• With the elimination of the voltage regulator, generator control is carried out by the PCM. (See GENERATOR CONTROL OPERATION [LF, L3].) Exciting current in the field coil is increased or decreased by the duty signal from the PCM sent to the power transistor built into the generator.
• The generator warning light in the instrument cluster illuminates under the following conditions. (See DTC DETECTION LOGIC AND CONDITIONS [LF, L3].)
