BATTERY REMOVAL/INSTALLATION [ZY, Z6]

id0117008005a0

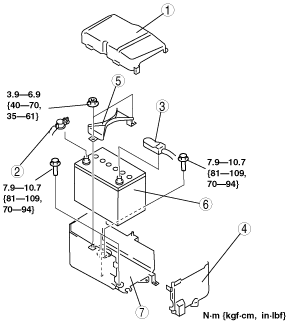

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

am3zzw00007299

1	Battery cover (See Battery Cover Removal Note.) (See Battery Cover Installation Note.)
2	Negative battery cable
3	Positive battery cable
4	Battery box (See Battery Box Installation Note.)
5	Battery clamp
6	Battery
7	Battery tray

Battery Cover Removal Note

Caution

•  To prevent damage to the clips, remove the battery cover one side at a time.

•  When pulling the clips, do not apply excessive force to a clip using the screwdriver or pair of pliers.

am3zzw00007300

1.  Remove the battery cover using the following procedure.

am3zzw00007301

(1)  Pull the clip (LH) in the outward direction and disengage the battery cover tabs.

(2)  Pull the clip (RH) in the outward direction and disengage the battery cover tabs.

(3)  Remove the battery cover.

Battery Box Installation Note

1.  Assemble with the battery box hooks E aligned with the battery tray holes at two points.

am3zzw00007302

Battery Cover Installation Note

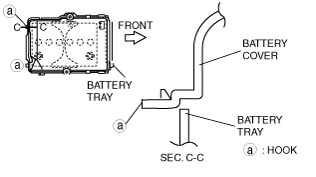

1.  Install with the battery cover hooks A aligned with the battery tray holes at two points.

am3zzw00007303

2.  Install with the battery cover hooks D aligned with the battery tray flange at two points.

am3zzw00007304

3.  Set the battery cover to the battery tray clips C at two points.

am3zzw00007305
