• Direct ignition coils installed directly to each spark plug have been adopted. By adopting direct ignition coils, high-tension leads have been eliminated in order to simplify the parts of the ignition system, and also to prevent voltage reduction and improve the firing efficiency.
• Independent firing control has been adopted to eliminate firing without spark, increasing firing energy.
• The direct ignition coil consists of an ignition coil, ignition coil connector, and boot area, which has the same function as the current high-tension lead.
• The firing timing of the coil is controlled by the PCM by means of a built-in igniter for optimum ignition timing control.

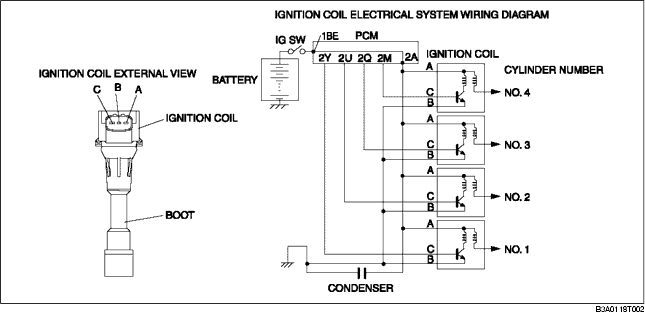

Terminal layout
